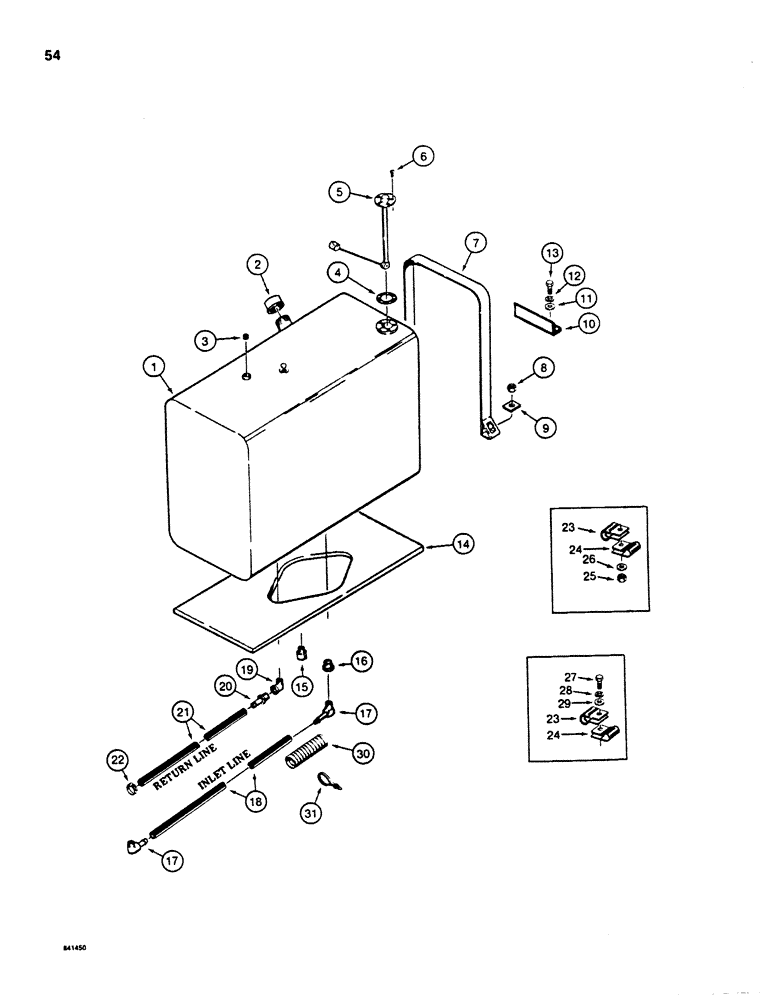

Запчасти Case 880D (054) - FUEL TANK AND LINES (02) - FUEL SYSTEM

1

S514118

FUEL TANK

ASSEMBLY - diesel fuel, Includes: Ref. 2

1шт.

2

S66921

FILLER CAP

CAP - fuel tank

1шт.

3

221-662

PLUG,Hex Hd, 1/4"-18

- hex head, 1/4" NPT

1шт.

4

S49745

GASKET

GASKET - fuel gauge

1шт.

5

S239445

ELECTRICAL GAUGE

FUEL GAUGE ASSEMBLY - fuel level

1шт.

6

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

MACHINE SCREW - No. 10 - 32NF x 3/4"

5шт.

7

S93863

STRAP

- mounting, fuel tank

2шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16NC, plated

4шт.

9

S108148

SPACER

- mounting strap

4шт.

10

S238105

ANGLE

- mounting, fuel tank

1шт.

11

S95569

WASHER

- flat, special, 1/2"

1шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

13

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

14

S224325

PAD

- fuel tank

1шт.

15

217-81

VALVE

- tank drain

1шт.

16

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

- 3/8" NPT x 1/4" NPT

1шт.

17

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

BARB FITTING - 90 degree, engine supply line

2шт.

18

REF

INSTRUCTION

HOSE - engine supply, 107" (2718 mm) long, cut from S 120317, see below

1шт.

19

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree, engine return line, at tank

1шт.

20

S120648

CONNECTOR, ELEC

BARB FITTING - straight, engine return line (Replaces 217-126)

1шт.

21

REF

INSTRUCTION

HOSE - engine return, 109" (2769 mm) long, cut from S 118575, see below

1шт.

22

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1шт.

23

A61275

CLIP

CLAMP - engine return hose

4шт.

24

S77322

CLAMP

- engine supply hose

4шт.

25

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8", plated, mounts clamps to turntable

2шт.

26

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

27

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 20 mm (8.8), plated, mounts clamps to engine (Replaces 814-12020)

2шт.

28

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

2шт.

29

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

30

REF

INSTRUCTION

GUARD - edge, 3" (76 mm) long, cut from S 119514, see below

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S120317

HOSE,0.31" ID x 300.00", SAE 30R2 Type 1

- Bulk roll 0.31" ID x 300.00", SAE 30R2 Type 1

1шт.

S118575

HOSE,0.19" ID x 300.00", SAE 30R3

- Bulk roll 0.19" ID x 300.00", SAE 30R3

1шт.

S119717

CONDUIT

- bulk length, used as edge guard, 192" (4877 mm) long

1шт.
