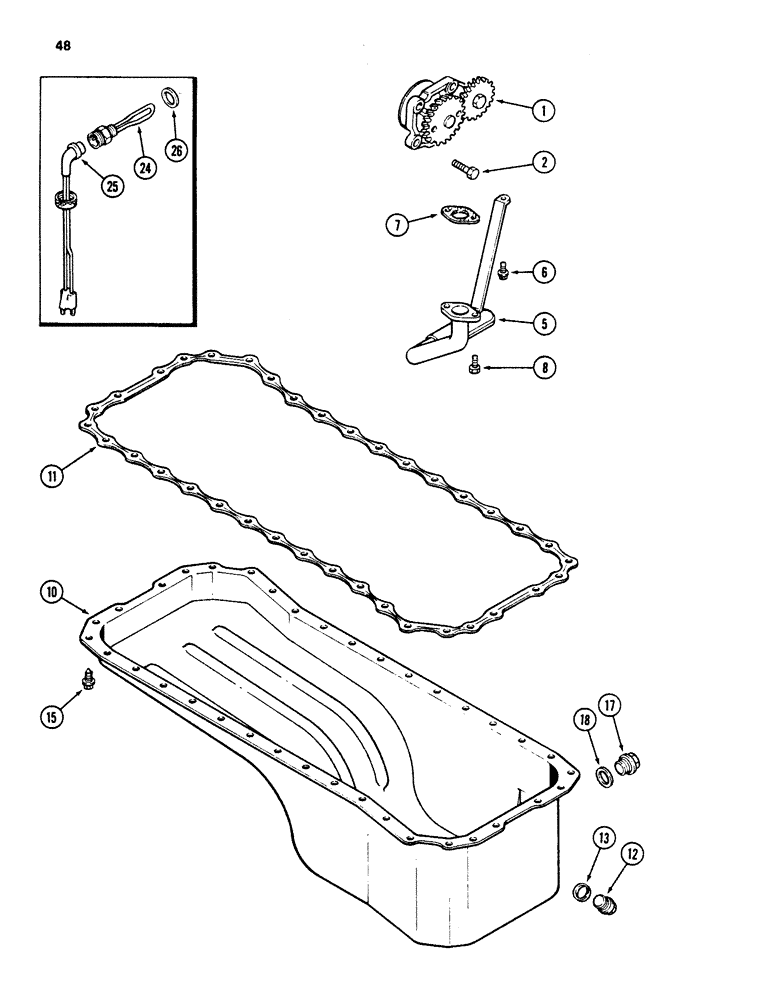

Запчасти Case 880D (048) - OIL PUMP AND OIL PAN, 6T-590 DIESEL ENGINE (01) - ENGINE

1

JR906414

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - engine oil (Remanufactured)

1шт.

1

JC906414

CORE-HYDRAULIC PUMP

RETURN NUMBER - oil pump assembly (Use this number to return pump core for credit)

1шт.

J906414

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine (New)

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 30, 8.8, Full Thd

4шт.

5

J901289

TUBE

TUBE AND SCREEN - oil suction

1шт.

6

J901235

BOLT

BOLT - hex flanged, M8 x 12 mm

1шт.

7

J905468

GASKET

GASKET - mounting, tube

1шт.

Part of Oil Pan Gasket Kit, P/N A77492

1шт.

8

813-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, M8 x 16 mm

2шт.

10

J901288

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

11

J906028

OIL PAN GASKET SET

GASKET - oil pan

1шт.

Part of Oil Pan Gasket Kit, P/N A77492

1шт.

12

J900215

PLUG

PLUG - drain oil

1шт.

13

J900216

PACKING RING

WASHER - plug

1шт.

Part of Oil Pan Gasket Kit, P/N A77492

1шт.

15

J901755

BOLT

BOLT - hex flanged, M18 x 17 mm

36шт.

17

J904386

PLUG

PLUG - heater hole, M18

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - heater plug

1шт.

A77492

GASKET KIT

GASKET KIT - oil pan, Includes: Ref. 7, 11, 13

1шт.

A77490

KIT

HEATER KIT - engine oil, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77490) (Reference No. J904380)

1шт.

25

J905113

CABLE

CABLE - heater, electric

1шт.

26

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - heater sealing

1шт.
