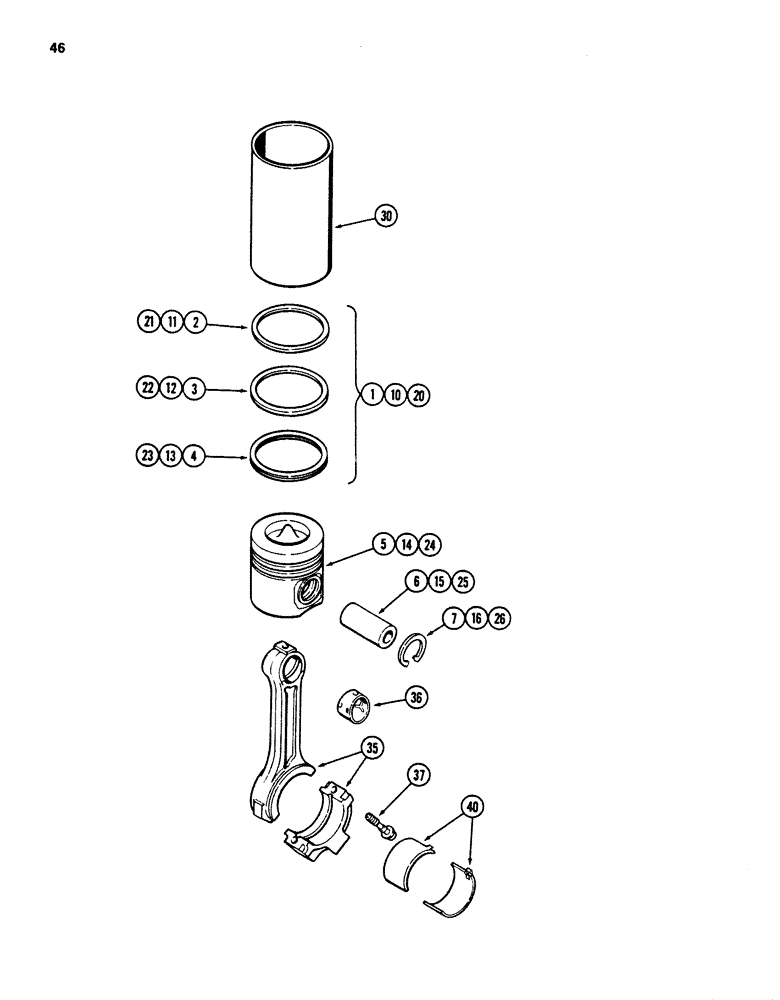

Запчасти Case 880D (046) - PISTONS, 6T-590 DIESEL ENGINE / CONNECTING RODS (01) - ENGINE

A77497

SET

PISTON KIT - engine (Standard), Includes: Ref. 1 - 7

6шт.

1

A77500

PISTON RING SET

RING KIT - piston (Standard), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression (Top) (Reference No. J904529)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (Middle) (Reference No. J904531)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil (Bottom) (Reference No. J903384)

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Standard) (Reference No. J903579)

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

- pin retainer

2шт.

A77498

PISTON

KIT - engine (0.5 mm oversize), Includes: Ref. 10 - 16

6шт.

10

A77501

PISTON RING SET

RING KIT - piston (0.5 mm oversize), Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Top) (Reference No. J902392)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression (Middle) (Reference No. J904347)

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil (Bottom) (Reference No. J904349)

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - cylinder (0.5 mm oversize) (Reference No. J903656)

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

- pin retainer

2шт.

A77499

PISTON

KIT - engine (1.0 mm oversize), Includes: Ref. 20 - 26

6шт.

20

A77502

PISTON RING SET

RING KIT - piston (1.0 mm oversize), Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression (Top) (Reference No. J902441)

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression (Middle) (Reference No. J904348)

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil (Bottom) (Reference No. J904350)

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - cylinder (1.0 mm oversize) (Reference No. J903655)

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

- pin retainer

2шт.

30

J904166

SLEEVE

LINER - piston (Used only in engine block repair) (When liner is installed, use only A77497 piston kit)

1шт.

JR901569

ROD

ASSEMBLY - connecting, remanufactured

6шт.

JR942581

REMAN-CONNECTING ROD

Connecting Rod

6шт.

JC901569

CORE-ROD CONNECTING

Return Number - use this part no. to return connecting rod for credit

6шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 36 and 37

6шт.

35

84145405R

REMAN-CONNECTING ROD

880D, Reman For New PN J901569

6шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - rod to piston (Order J901569) (Reference No. J901085), connecting rods

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex special, MJ11 x 26 mm, connecting rods

2шт.

40

A77465

BEARING SET

BEARING KIT - connecting (Set) (Upper and lower standard)

6шт.

40

A77466

BEARING SET

BEARING KIT - connecting (Set) (Upper and lower 0.25 mm oversize)

6шт.

40

A77467

BEARING LINER

BEARING KIT - connecting (Set) (Upper and lower 0.5 mm oversize)

6шт.

40

A77468

BEARING SET

BEARING KIT - connecting (Set) (Upper and lower 0.76 mm oversize)

6шт.

40

A77469

BEARING SET

BEARING KIT - connecting (Set) (Upper and lower 1.0 mm oversize)

6шт.
