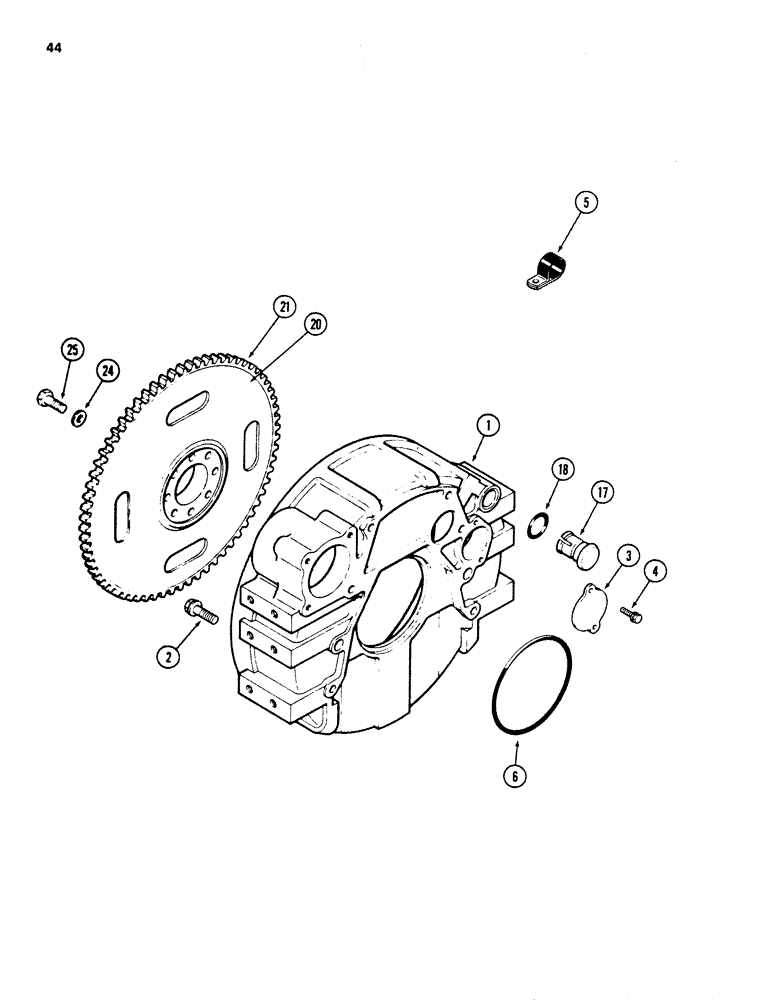

Запчасти Case 880D (044) - FLYWHEEL AND HOUSING, 6T-590 DIESEL ENGINE (01) - ENGINE

1

J903282

HOUSING

- flywheel

1шт.

2

J901408

BOLT

- housing retaining

8шт.

3

J901399

PLATE

- cover

1шт.

4

J902735

BOLT,M8 - 1.25 x 21 mm

- hex, plate retaining

2шт.

5

A77531

CLIP

- retaining

1шт.

6

J901397

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

-, Serial Range: housing-block

1шт.

17

J904470

PLUG

- housing o-ring

1шт.

18

J904469

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - ring, plug

1шт.

20

J905898

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY - cankshaft, Includes: Ref. 21

1шт.

21

J905427

GEAR

- ring, flywheel

1шт.

24

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

25

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex cap, M12 x 32 mm

8шт.
