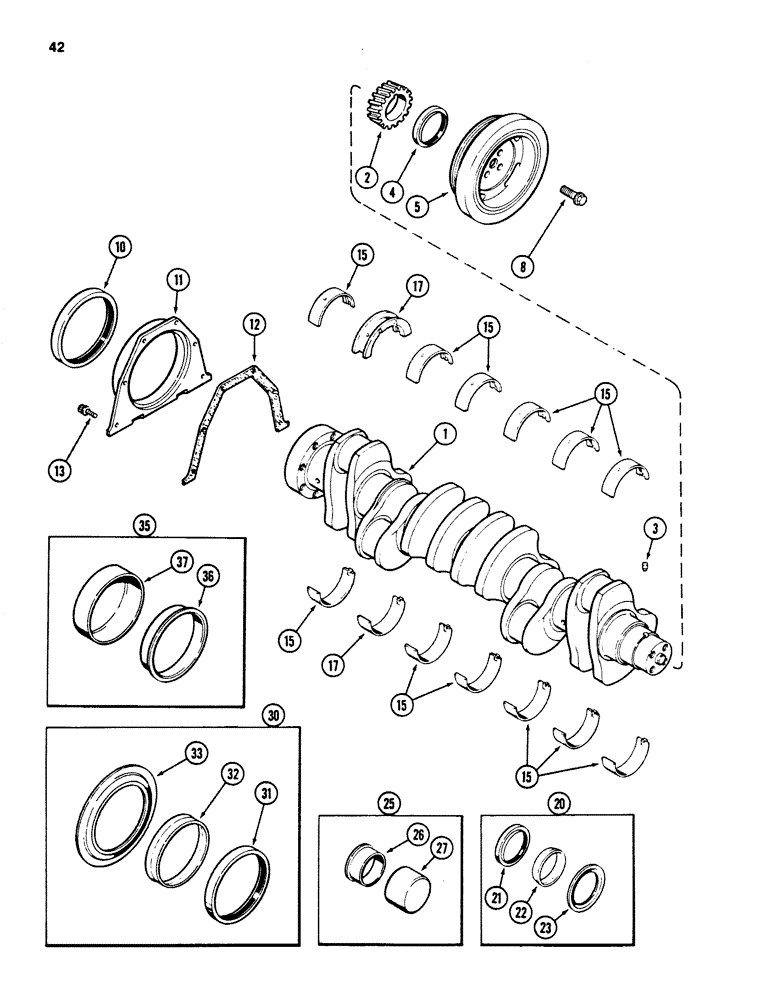

Запчасти Case 880D (042) - CRANKSHAFT, 6T-590 DIESEL ENGINE (01) - ENGINE

1

JR905730

CRANKSHAFT

ASSEMBLY - engine (Remanufactured), Includes: Ref. 2 and 3

1шт.

1

JC905730

CORE-CRANKSHAFT

RETURN NUMBER - crankshaft assembly (use this number to return crankshaft for credit), Includes: Ref. 2 and 3

1шт.

1

J905730

CAMSHAFT

CRANKSHAFT ASSEMBLY - engine (New), Includes: Ref. 2 and 3

1шт.

2

J901258

GEAR

- crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order Ref 20) (Refernce No. J900709)

1шт.

5

J907190

GROOVED PULLEY

PULLEY - crankshaft dampener

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

FLANGED HEX, M12 x 36 mm

4шт.

10

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear (Order Ref 30) (Reference No. J904089)

1шт.

11

J906526

RETAINER

- rear seal

1шт.

12

J901019

GASKET

- seal retainer

1шт.

13

J900627

BOLT,Hex Flg, M6 x 14mm, Cl 8.8

- flanged hex, M6 x 14 mm

6шт.

15

A77405

CRANKSHAFT BEARING

BEARING KIT - main (Set) upper and lower, standard

6шт.

15

A77472

BEARING SET

BEARING KIT - main (Set) upper and lower, 0.25 mm oversize

6шт.

15

A77474

BEARING SET

BEARING KIT - main (set) upper and lower, 0.5 mm oversize

6шт.

15

A77476

BEARING SET

BEARING KIT - main (Set) upper and lower, 0.75 mm oversize

6шт.

15

A77478

BEARING SET

BEARING KIT - main (Set) upper and lower, 1.0 mm oversize

6шт.

17

A77406

CRANKSHAFT BEARING

BEARING LIT - thrust, main (Set) upper and lower, standard

1шт.

17

A77473

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower, 0.25 mm oversize

1шт.

17

A77475

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower, 0.5 mm oversize

1шт.

17

A77477

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower, 0.75 mm oversize

1шт.

17

A77479

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower, 1.0 mm oversize

1шт.

20

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front (Reference No. J900709)

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J906080

PACKAGE, REPAIR

WEAR SLEEVE KIT - crankshaft front, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J904323

SEAL

KIT - oil, crankshaft rear, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (Reference No. J904089)

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J906081

SLEEVE

WEAR SLEEVE KIT - crankshaft rear, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
