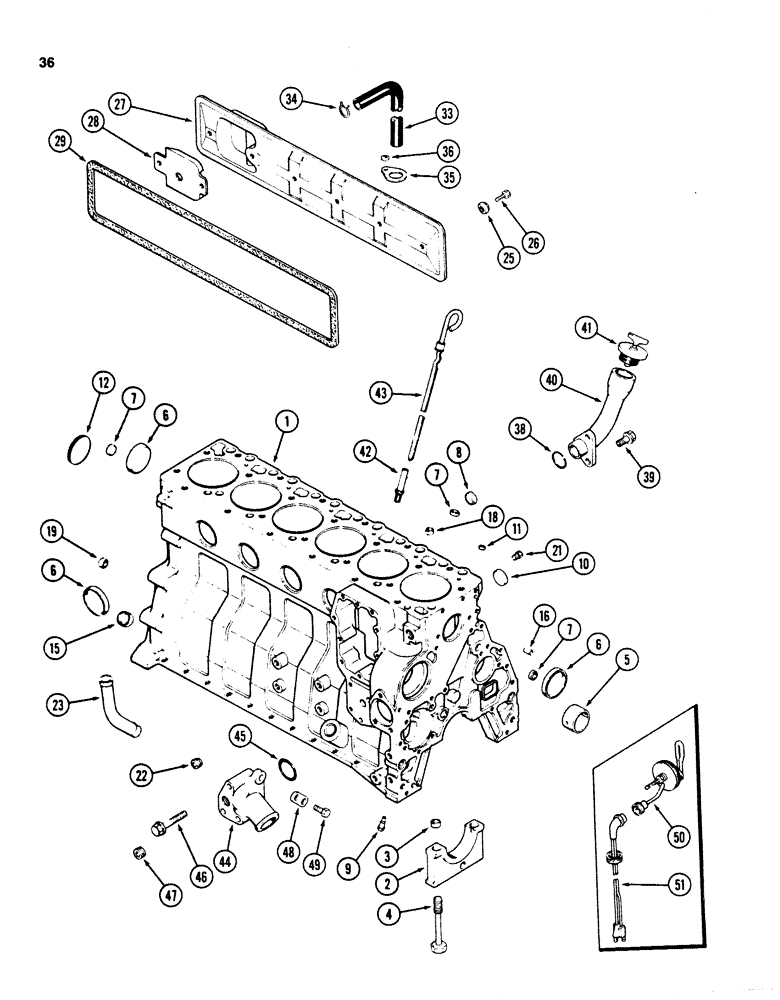

Запчасти Case 880D (036) - CYLINDER BLOCK, 6T-590 DIESEL ENGINE (01) - ENGINE

1

J905812

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New) (Includes stripped block, pistons, connecting rods and bearing, crankshaft and bearings and crankshaft) (Order block and J905813 kit), Includes: Ref. 1 - 8

1шт.

1

JR905812

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly, Short Engine (Remanufactured) (Order Block and J905813 Kit), Includes: Ref. 1 - 8

1шт.

1

JC905812

CORE-ENGINE

Return Part Number, Engine Short Block (Use This Number To Return Block Core For Credit), Includes: Ref. 1 - 8

1шт.

1

JR933182

REMAN-SHORT ENGINE

Remanufactured

1шт.

1

JC933182

CORE-SHORT ENGINE

Return Part Number

1шт.

1

1989096C2R

ENGINE, EXCHANGE

Engine (Exchange) Remanufactured

1шт.

1

1989096C2C

CORE-ENGINE

Return Part Number

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Order block and J905813 kit), Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

CAP - bearing, main

7шт.

3

J900068

BEARING WASHER

DOWEL - ring, bearing cap

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - hex cap

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure 38)

1шт.

6

J900965

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

J900957

PLUG

PLUG - expansion, 26 mm OD

4шт.

J905813

PACKAGE, REPAIR

KIT - block hardware, Includes: Ref. 9 - 22

1шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

J900687

PLUG

PLUG - expansion, (Welch) 60 mm OD

1шт.

15

A77439

PLUG

PLUG - expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

18

J902343

DOWEL

DOWEL - ring, 16 mm OD

2шт.

19

J900068

BEARING WASHER

DOWEL - ring, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8 inch PT

2шт.

22

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger drain

1шт.

25

J900267

SEAL

SEAL ASSEMBLY - cover bolt

4шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

4шт.

27

J904672

COVER

COVER - tappet

1шт.

28

J911822

COVER

BAFFLE - tappet cover (Replaces J907586)

1шт.

29

J904776

GASKET

GASKET - tappet cover

1шт.

33

J906593

HOSE

Breather

1шт.

34

J904230

CLAMP,25.4mm

CLAMP - spring, hose

1шт.

35

J904231

CLIP

CLIP - hose

1шт.

36

J905479

SPRING NUT

NUT - spring, hose clip

1шт.

38

J906704

O-RING

SEAL - o-ring

1шт.

39

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - flanged hex, M12 x 25 mm

2шт.

40

J905440

TUBE

OIL FILL

1шт.

41

A77424

FILLER CAP

CAP ASSEMBLY - fill tube

1шт.

42

J905425

TUBE,9.52 mm OD x 93 mm L

TUBE - dipstick

1шт.

43

J905786

DIPSTICK

DIPSTICK ASSEMBLY - oil level

1шт.

44

J903102

CONNECTION

CONNECTION - water inlet

1шт.

45

J901467

O-RING,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing

1шт.

46

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT - flanged hex, M10 x 75 mm

3шт.

47

A77429

PLUG

PLUG - hex socket pipe, 1/2 inch PT

1шт.

48

J903089

SUPPORT

BRACE - alternator mounting

1шт.

49

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 20, 8.8, Full Thd

1шт.

A77489

KIT

HEATER KIT - engine coolant

1шт.

50

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77489) (Reference No. J903645)

1шт.

51

J905113

CABLE

CABLE - heater, electric

1шт.
