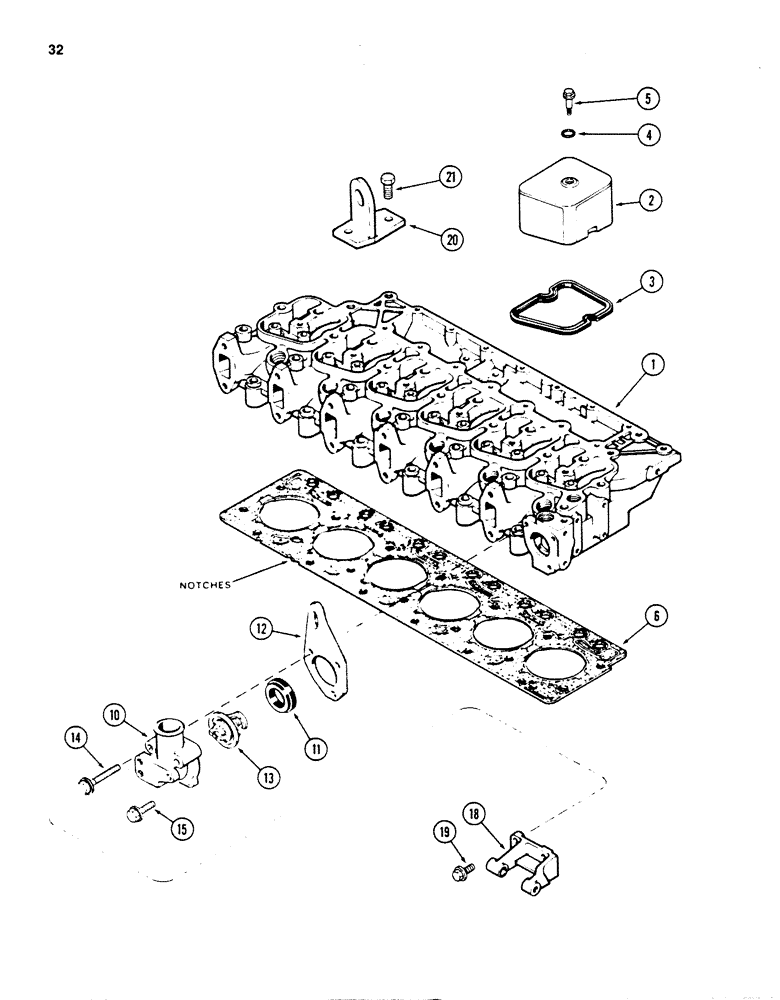

Запчасти Case 880D (032) - CYLINDER HEAD COVERS, 6T-590 DIESEL ENGINE (01) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder (See Figure 34)

1шт.

2

J902604

COVER

- valve rocker

6шт.

3

J902666

GASKET

SEAL - rocker cover

6шт.

4

J901837

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

SEAL - o-ring

6шт.

5

J907049

BOLT,Hex

- flanged hex, M8 x 13.5 mm

6шт.

6

J905026

GASKET

- cylinder head (Standard) (Without notches)

1шт.

6

J903653

GASKET

- cylinder head, 0.040 inch (1 mm) over bore, standard thickness (1 notch)

1шт.

6

J903654

GASKET

- cylinder head, 0.040 inch (1 mm) over bore, 0.010 inch (0.25 mm) thickness (2 notches)

1шт.

6

J905073

GASKET

- cylinder head, 0.040 inch (1mm) over bore, 0.020 inch (0.050 mm) thickness (3 notches)

1шт.

10

J903756

HOUSING

- thermostat

1шт.

11

J903301

GASKET

- housing, thermostat

1шт.

12

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

13

J906700

THERMOSTAT

- water, 95 C (203 F), housing

1шт.

O

1шт.

14

J903096

FLANGE BOLT,Hex, M8 x 70mm, Cl 8.8

BOLT - flanged hex, M8 x 70 mm, thermostat and housing

2шт.

15

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

BOLT - flanged hex, M8 x 35 mm, thermostat and housing

1шт.

18

J906936

SUPPORT

- alternator mounting, thermostat and housing

1шт.

19

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- flanged hex, M8 x 25 mm, thermostat and housing

3шт.

20

J903173

BRACKET

- lifting, rear, thermostat and housing

1шт.

21

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, M12 x 1.75 x 25, thermostat and housing

2шт.
