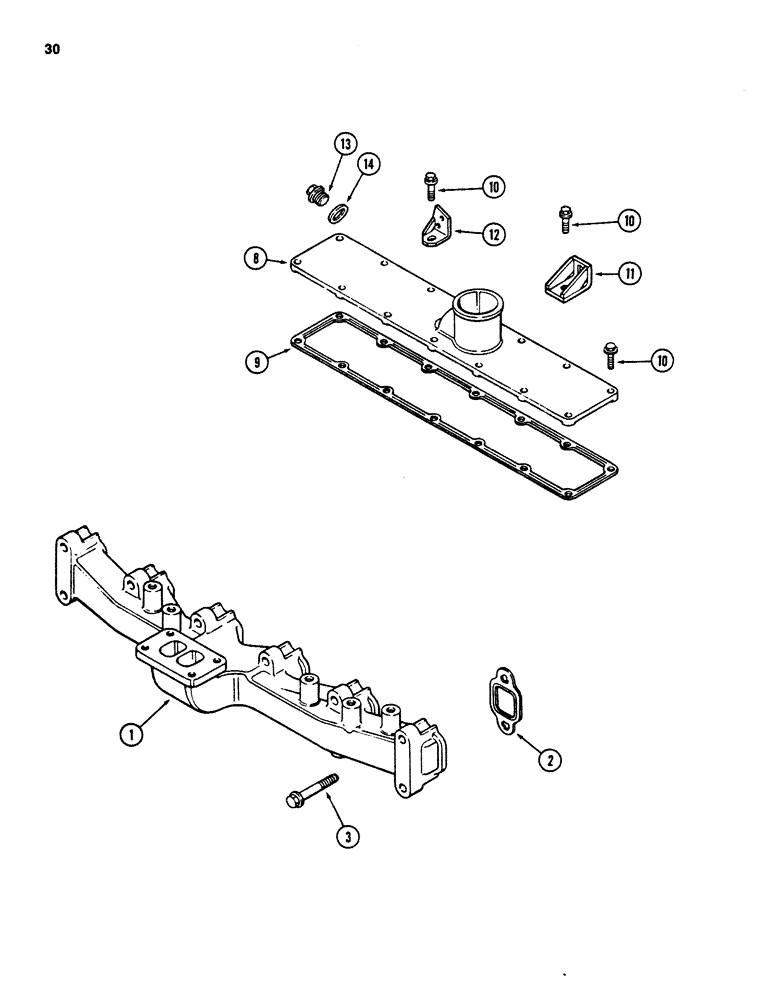

Запчасти Case 880D (030) - MANIFOLDS, 6T-590 DIESEL ENGINE, EXHAUST (01) - ENGINE

1

J902347

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- mounting, manifold

6шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

BOLT - hex flanged, M10 x 65

12шт.

8

J904862

COVER

- intake manifold

1шт.

9

J907036

GASKET

- intake cover

1шт.

10

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- flanged hex, M8 x 16 mm, intake

2шт.

11

REF

INSTRUCTION

BRACKET - fuel line (See Figure 60), intake

2шт.

12

REF

INSTRUCTION

BRACKET - fuel line (See Figure 60), intake

2шт.

13

J907185

PLUG

- manifold, intake

1шт.

14

J906773

WASHER

- sealing, plug, intake

1шт.
