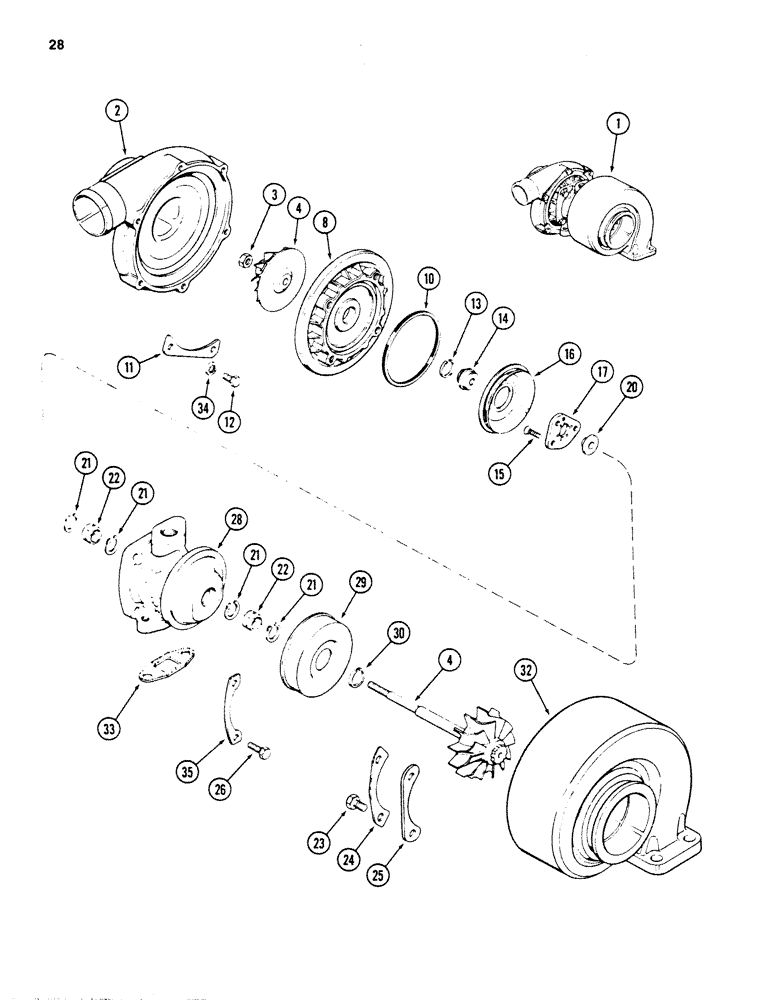

Запчасти Case 880D (028) - TURBOCHARGER, 6T-590 DIESEL ENGINE (01) - ENGINE

1

J907028

TURBOCHARGER

TURBOCHARGER ASSEMBLY - new, Includes: Ref. 1 - 35

1шт.

1

JR802289

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR907028

REMAN-TURBOCHARGER

Turbocharger Assembly - Remanufactured, Includes: Ref. 1 - 35

1шт.

1

JC907028

CORE-TURBOCHARGER

Return Part Number - Use this number to return turbocharger core for credit, Includes: Ref. 1 - 35

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor (Reference No. J904748)

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - hex lock (Reference No. J904749)

1шт.

Part of Overhaul Kit, P/N J904772

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - turbocharger (Reference No. J904771)

1шт.

8

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor (Reference No. J904750)

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - diffuser (Reference No. J904751)

1шт.

Part of Overhaul Kit, P/N J904772

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - diffuser clamping (Reference No. J904752)

3шт.

12

NSS

NOT SOLD SEPARAT

BOLT AND WASHER ASSEMBLY - hex lock (Reference No. J904753)

6шт.

Part of Overhaul Kit, P/N J904772

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - split ring, compressor (Reference No. J904754)

1шт.

Part of Overhaul Kit, P/N J904772

1шт.

14

NSS

NOT SOLD SEPARAT

SLINGER - oil (Reference No. J904755)

3шт.

15

NSS

NOT SOLD SEPARAT

SCREW - flat head Torx (Reference No. J904757)

3шт.

Part of Overhaul Kit, P/N J904772

1шт.

16

NSS

NOT SOLD SEPARAT

BAFFLE - oil (Reference No. J904756)

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING - thrust (Reference No. J904758)

1шт.

Part of Overhaul Kit, P/N J904772

1шт.

20

NSS

NOT SOLD SEPARAT

COLLAR - thrust (Reference No. J904759)

1шт.

21

NSS

NOT SOLD SEPARAT

RING - snap (Reference No. J904760)

4шт.

Part of Overhaul Kit, P/N J904772

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft (Reference No. J904761)

2шт.

Part of Overhaul Kit, P/N J904772

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT - (Reference No. J904762)

4шт.

Part of Overhaul Kit, P/N J904772

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing (Reference No. J904763)

2шт.

Part of Overhaul Kit, P/N J904772

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing (Reference No. J904764)

2шт.

26

NSS

NOT SOLD SEPARAT

BOLT AND WASHER ASSEMBLY - hex lock (Reference No. J904765)

4шт.

Part of Overhaul Kit, P/N J904772

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - turbine bearing (Reference No. J904766)

1шт.

29

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine (Reference No. J904767)

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - piston ring, turbine (Reference No. J904768)

1шт.

Part of Overhaul Kit, P/N J904772

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING - turbine (Reference No. J904769)

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET - oil drain (Reference No. J904770)

1шт.

Part of Overhaul Kit, P/N J904772

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - lock (Reference No. J904774)

6шт.

Part of Overhaul Kit, P/N J904772

1шт.

35

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine (Reference No. J904775)

2шт.

Part of Overhaul Kit, P/N J904772

1шт.

J904772

PACKAGE, REPAIR

KIT - overhaul, turbocharger, Includes: Ref. 3, 10, 12, 13, 15, 17, 21, 22, 23, 24, 26, 30, 33, 34, 35

1шт.
