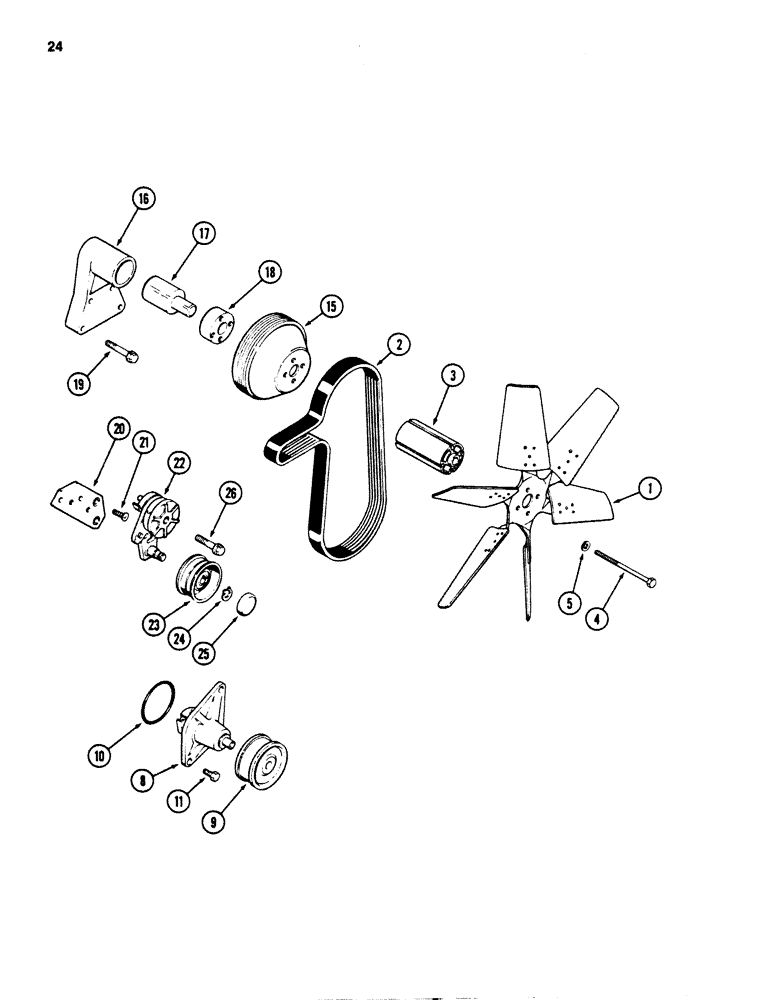

Запчасти Case 880D (024) - FAN AND WATER PUMP SYSTEM, 6T-590 DIESEL ENGINE (01) - ENGINE

1

A171580

FAN

- engine, 50 mm

1шт.

This fan is replaced by A173559 fan, 60 mm, per ECS #DR0185-056 at S/N 6280950E and up.

1шт.

2

J903091

V-BELT,3.56 mm W x 1422.40 mm L, 8 Ribs

Fan 3.56 mm W x 1422.40 mm L, 8 Ribs

1шт.

3

A172592

SPACER

- fan, 50 mm

1шт.

For a 60 mm spacer, use P/N A173333.

1шт.

4

827-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

4шт.

5

H426775

WASHER

- flat, hardened

4шт.

AR77471

REMAN-WATER PUMP

PUMP ASSEMBLY - water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

880D

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77471

CORE-WATER PUMP

RETURN NUMBER - use this part no. to return pump core for credit

1шт.

A77471

PUMP, WATER

PUMP KIT - water, Includes: Ref. 8 and 9

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

880D, Replaces P/N A77471 & AR77471

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water (Reference No. J903749)

1шт.

9

NSS

NOT SOLD SEPARAT

PULLEY - water pump (Order A77471) (Reference No. J903657)

1шт.

10

A30395

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

- sealing

1шт.

11

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

15

J908447

PULLEY

- fan (Replaces J902710)

1шт.

16

J913433

BRACKET

ASSEMBLY - fan pulley (Replaces J907068), Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

SHAFT - bearing (Order J907068) (Reference No. J907067)

1шт.

18

NSS

NOT SOLD SEPARAT

HUB - pulley mounting (Reference No. J901364)

1шт.

19

J900678

BOLT,Hex Flg, M8 x 40mm, Cl 8.8

SCREW - flanged, hex, M8 x 1 x 63 mm

4шт.

20

J904548

BRACKET

- tensioner mounting

1шт.

21

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, M8 x 1 x 25

2шт.

22

J907469

BELT TENSIONER

TENSIONER ASSEMBLY - belt

1шт.

23

NSS

NOT SOLD SEPARAT

PULLEY ASSEMBLY - tensioner, Includes: Ref. 23 - 25

1шт.

24

NSS

NOT SOLD SEPARAT

RING - snap, bearing

1шт.

25

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

26

J905426

BOLT,Hex, M10 x 1.5 x 61.86mm

- flanged, hex, M10 x 1.50 x 62 mm

1шт.

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

196-1

WASHER,13/32" x 13/16" x .089", HDN

10 mm

4шт.
