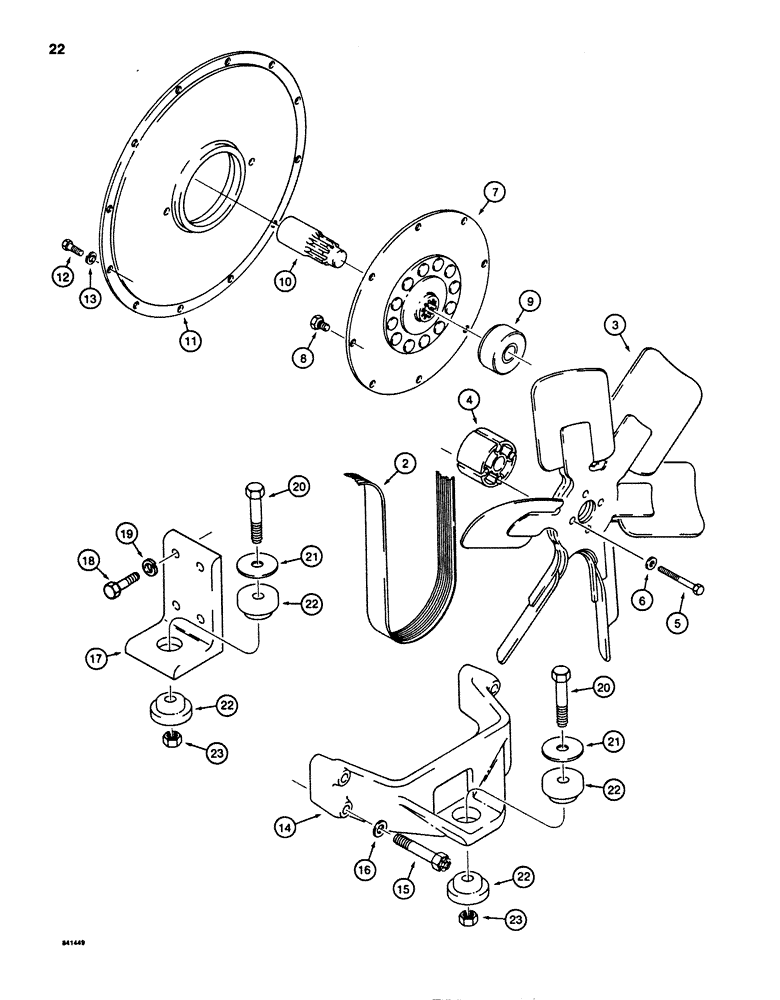

Запчасти Case 880D (022) - ENGINE MOUNTING AND ADAPTING PARTS (01) - ENGINE

1

REF

INSTRUCTION

ENGINE - Case 6T590, not shown, parts list Figures 24-52 and 58-64

1шт.

2

J903091

V-BELT,3.56 mm W x 1422.40 mm L, 8 Ribs

Fan and Alternator 3.56 mm W x 1422.40 mm L, 8 Ribs

1шт.

3

A171580

FAN

PULLER FAN - engine cooling

1шт.

4

A172592

SPACER

-, Serial Range: fan-engine

1шт.

5

827-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

4шт.

6

H426775

WASHER

- flat, special

4шт.

7

S618518

DAMPER

PLATE - drive

1шт.

8

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- hex head, special, self-locking, 3/8" - 16 NC x 5/8"

8шт.

9

S118923

ADAPTER

- flywheel

1шт.

10

S242024

COUPLING

- pump drive shaft

1шт.

11

S52615

MOUNTING PARTS

MOUNTING PLATE - hydraulic pump

1шт.

12

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 35 mm (8.8), plated

12шт.

13

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

12шт.

14

A170985

BRACKET

- front engine mounting

1шт.

15

A171690

BOLT

BOLT - hex head, 12 mm - 1.75 x 85 mm (10.9), special

4шт.

16

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 12 mm, special, hardened

1шт.

17

S240986

ANGLE

BRACKET - rear engine mounting

2шт.

18

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 40 mm (8.8), plated

8шт.

19

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

8шт.

20

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex head, 5/8" - 11NC x 3-1/2", grade 8

3шт.

21

S118895

WASHER

- flat, 5/8", special

3шт.

22

R49921

RUBBER MOUNTING

INSULATOR - rubber, front engine mount

6шт.

23

131-460

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8" - 11NC, plated

3шт.
