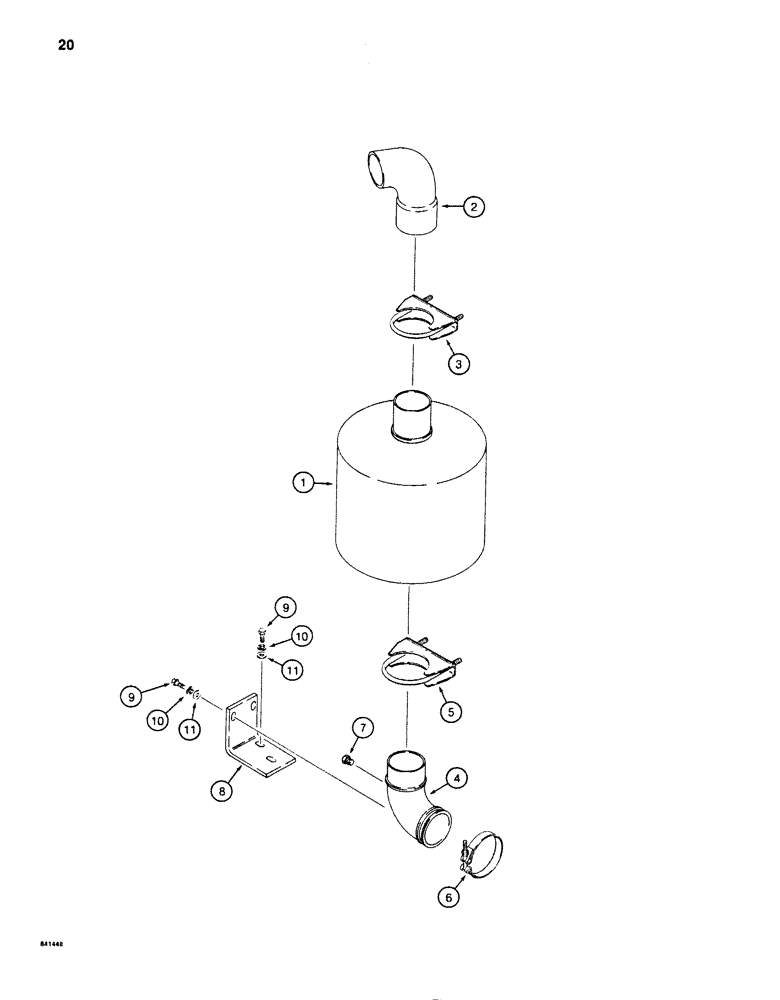

Запчасти Case 880D (020) - MUFFLER AND EXHAUST SYSTEM (01) - ENGINE

1

A171730

MUFFLER

- engine exhaust

1шт.

2

A171882

TUBE

EXTENSION PIPE - muffler exhaust

1шт.

3

L100055

CLAMP

- pipe

1шт.

4

A171822

ELBOW UNION

ELBOW -, Serial Range: turbocharger-muffler

1шт.

5

L73711

CLAMP

-, Serial Range: elbow-muffler

1шт.

6

A170467

CLAMP,72mm ID

-, Serial Range: turbocharger-elbow

1шт.

7

221-662

PLUG,Hex Hd, 1/4"-18

- hex head, 1/4" NPT

1шт.

8

A172484

BRACKET

- elbow

1шт.

9

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

plated Hex, M10 x 25, 8.8, Full Thd

4шт.

10

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

4шт.

11

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened, plated

4шт.
