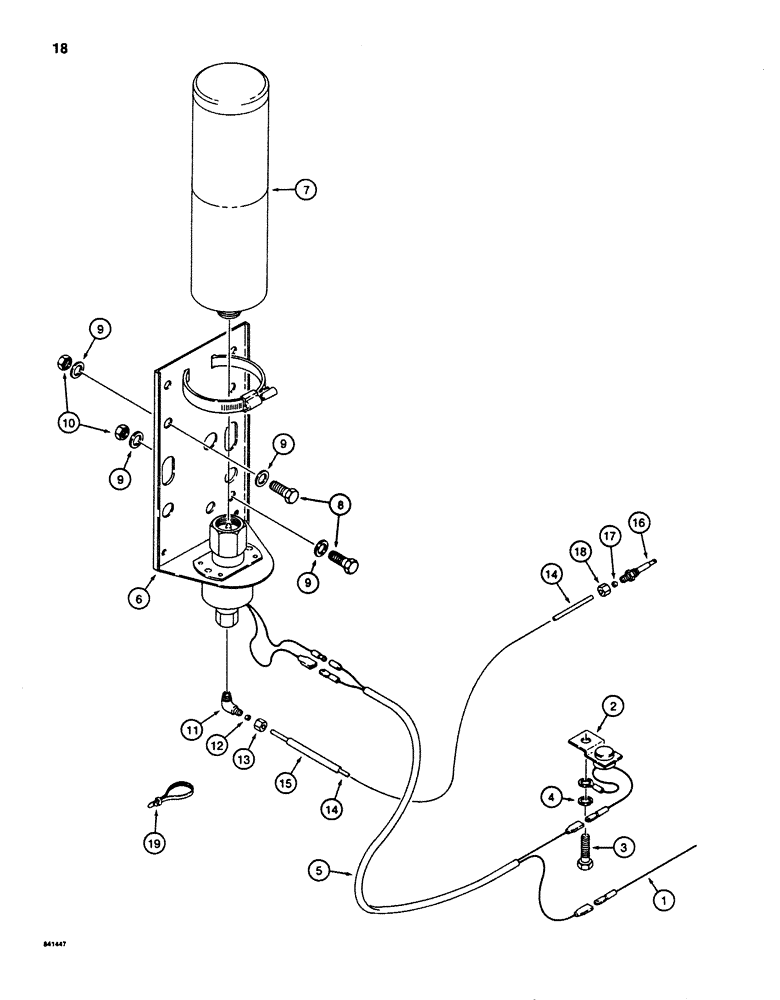

Запчасти Case 880D (018) - COLD WEATHER STARTING SYSTEM (01) - ENGINE

1

REF

INSTRUCTION

HARNESS - engine, see Figure 74

1шт.

2

A171943

IGNITION SWITCH

THERMOSTAT - circuit breaking, includes lead wires

1шт.

3

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

4

892-1108

LOCK WASHER,M8

1шт.

5

S242606

HARNESS

WIRE -, Serial Range: thermostat-valve

1шт.

6

A172516

VALVE

ASSEMBLY - component parts not serviced separately

1шт.

7

A171940

CYLINDER

Starting fluid

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

195-525

WASHER,3/8", SAE

4шт.

10

131-52

NUT,3/8"-16, GC

2шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

ASSY - Valve outlet, Incl. Ref 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

Brass

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass

1шт.

14

A172361

TUBE

Nylon, 1/8" (3 mm) x 72" (1829 mm) long

1шт.

15

REF

INSTRUCTION

LOOM - tube protection, 70" (1778 mm) long, cut from S118377, see below

1шт.

A172900

NOZZLE CAP

ASSEMBLY - cold start

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

17

222-650

SLEEVE,1/8" Tube, Comp

Brass

1шт.

18

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

1шт.

S118377

LOOM

Bulk roll, 240" (6096 mm) long

1шт.
