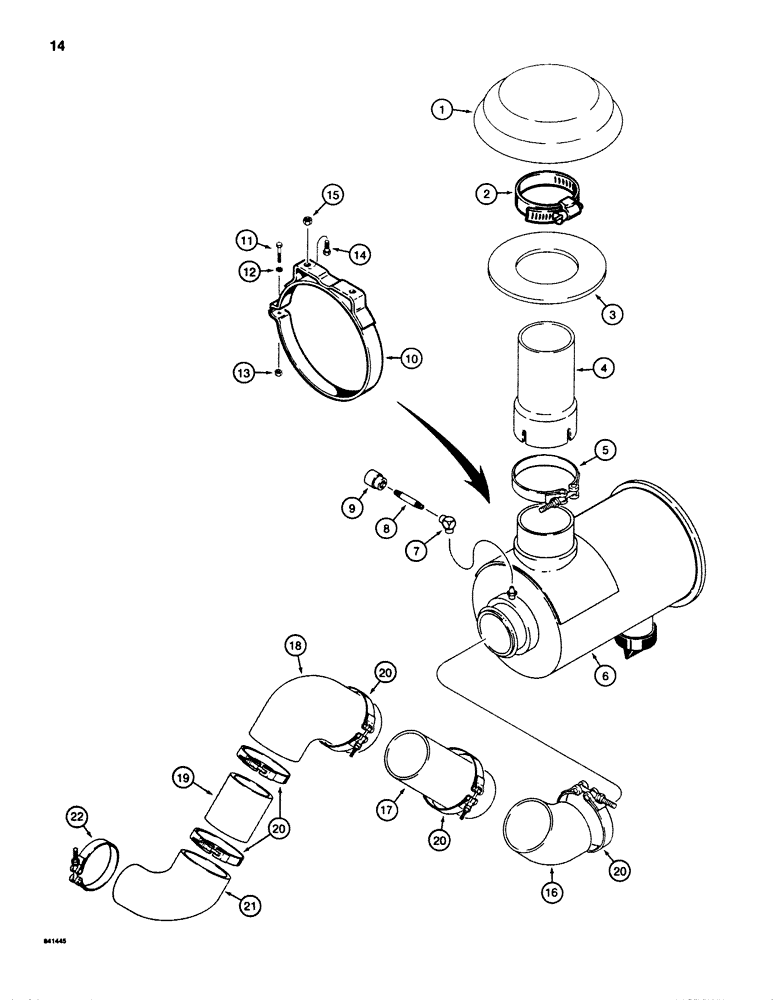

Запчасти Case 880D (014) - AIR CLEANER AND AIR INTAKE PARTS (01) - ENGINE

S512971

CAP

ASSEMBLY - air inlet tube, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CAP - air inlet tube

1шт.

2

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - cap

1шт.

3

S241675

PROTECTOR

PAD -, Serial Range: tube-hood

1шт.

4

A170340

PIPE

TUBE - air cleaner inlet

1шт.

5

214-362

CLAMP,#118, 4.56"-4.87", T-Bolt

- tube to air cleaner

1шт.

6

A170613

AIR CLEANER

- parts list Figure 16

1шт.

7

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- 90 degree, restriction indicator line

1шт.

8

221-111

PIPE,Nipple, 1/8" NPT x 3"

NIPPLE - 1/8" NPT x 3", restriction indicator line

1шт.

9

A59569

INDICATOR

RESTRICTION INDICATOR - air cleaner

1шт.

10

A16574

BAND

- air cleaner

2шт.

11

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

15

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

16

S516293

ELBOW

HOSE - 45 degree

1шт.

17

S112973

TUBE,400 mm OD x 732 mm L

- straight

1шт.

18

S80631

90 ELBOW,58.0 mm ID mm ID

ELBOW, 4.00" Id x 5.80", 90-Degree, Rubber

1шт.

19

S119354

TUBE,4" OD x 5" L

- straight

1шт.

20

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

- hose

5шт.

21

S516467

ELBOW

HOSE - 45 degree, reducing, at engine

1шт.

22

214-358

CLAMP,#80, 3.37"-3.68", T-Bolt

- hose

1шт.
