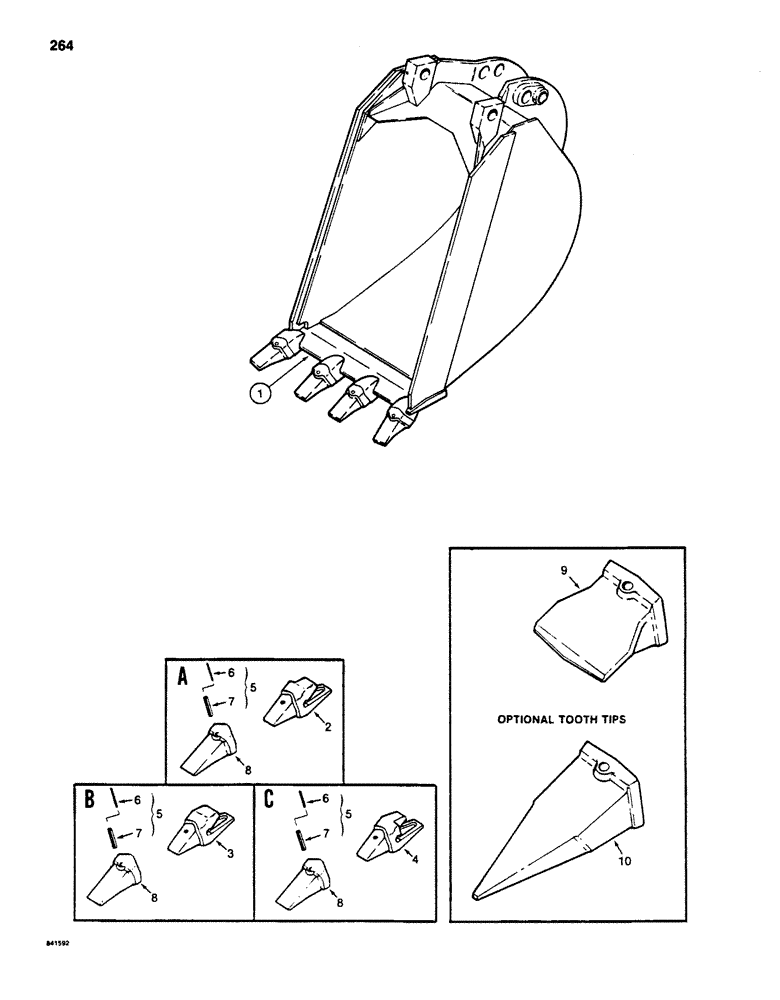

Запчасти Case 880D (264) - BACKHOE BUCKETS (19) - BUCKETS

S618790

BUCKET ASSEMBLY - 24" (610 mm), machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 8

1шт.

S618791

BUCKET ASSEMBLY - 30" (762 mm), machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 8

1шт.

S618792

BUCKET ASSEMBLY - 36" (914 mm), machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 8

1шт.

S618366

BUCKET ASSEMBLY - 36" (914 mm), high capacity, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 8

1шт.

S618365

BUCKET ASSEMBLY - 42" (1066 mm), high capacity, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 8

1шт.

Bucket quick latch is P/N S516583 eff June 1985

1шт.

BLOCKS ON FRONT CORNERS OF BUCKETS ARE S96206 AND S96205 - NO BUSHINGS IN BLOCKS

1шт.

1

S119061

EDGE

CUTTING - for 24" (610 mm) bucket

1шт.

1

S119062

EDGE

SPARE PART CUTTING - for 30" (762 mm) bucket

1шт.

1

S119262

EDGE

SPARE PART CUTTING - for 36" (914 mm) standard capacity bucket

1шт.

1

S119063

EDGE

CUTTING - for 36" (914 mm) high capacity bucket

1шт.

1

S119260

EDGE

SPARE PART CUTTING - for 42" (1066 mm) high capacity bucket

1шт.

2

S615011

SHANK

Tooth, LH

1шт.

3

S615009

SHANK

Tooth, center

1шт.

4

S615010

SHANK

Tooth, RH

1шт.

5

S239750

ROLL PIN

ASSEMBLY - tooth point, Includes: Ref. 6 and 7

1шт.

6

REF

INSTRUCTION

PLUG - rubber, 3" (76 mm) long, cut from S119223, see below

1шт.

7

138-310

LOCK PIN,1/2" x 3", Slotted

1шт.

8

S615008

POINT

Tooth, standard

1шт.

9

S615024

POINT

Tooth, spade, optional

1шт.

10

S615025

POINT

Tooth, rock, optional

1шт.

S119223

RUBBER

PLUG, 48" (1219 mm) long strip

1шт.
