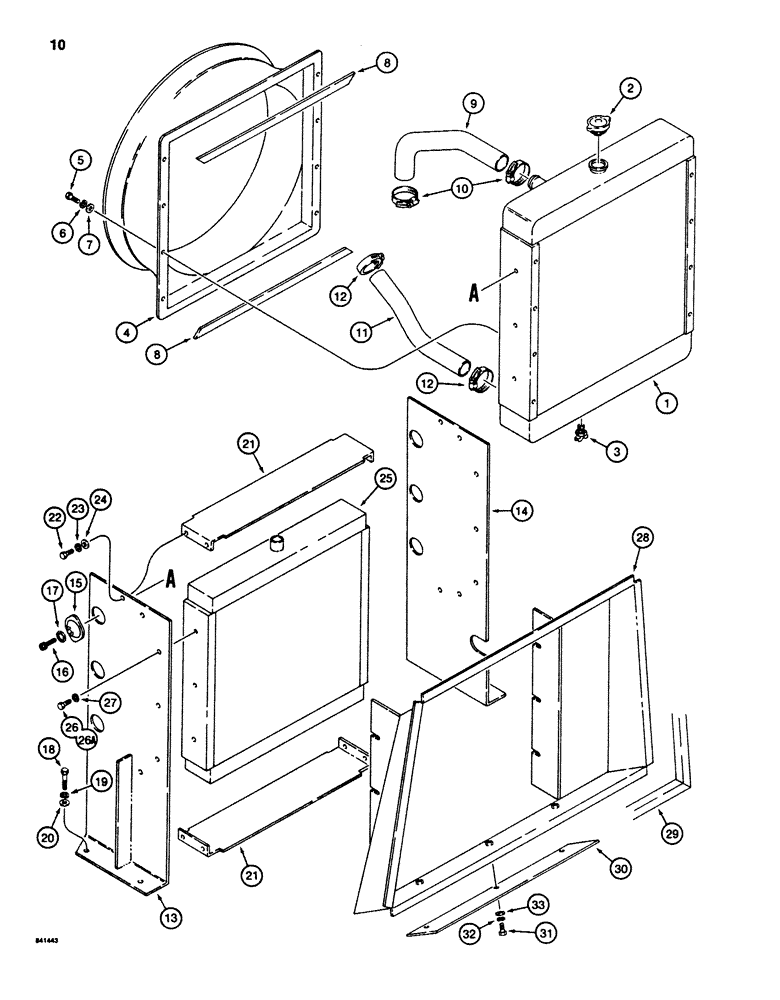

Запчасти Case 880D (010) - RADIATOR, OIL COOLER, AND HOSES (01) - ENGINE

1

A171784

RADIATOR

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

4

A171783

SHROUD

- fan

1шт.

5

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

6

892-1108

LOCK WASHER,M8

plated M8

8шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

8

A171316

SEAL

- shroud to radiator, upper

2шт.

9

S516338

HOSE

- radiator, upper

1шт.

10

214-218

CLAMP - hose

2шт.

11

S516148

LARGE HOSE,58.00 mm ID x 327.00 mm, SAE 20R4 CLASS C

RADIATOR HOSE, , Lower 58.00 mm ID x 327.00 mm, SAE 20R4 CLASS C

1шт.

12

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMB - hose

2шт.

13

S515785

BRACKET

- rear, includes Ref. 15

1шт.

14

S515783

BRACKET

- front, includes Ref. 15

1шт.

15

S222918

SHOCK ABSORBER

MOUNT: insulating

3шт.

16

S76819

STEP BOLT

BOLT - shoulder, 5/16" - 18NC x 1", special

6шт.

17

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 5/16"

6шт.

18

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

4шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

20

S95569

WASHER

- flat, 1/2", hardened

4шт.

21

S241019

BAR ASSY.

BRACKET - cross, upper and lower

2шт.

22

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

24

195-103

WASHER,5/16"

- flat, , plated 5/16"

8шт.

25

A171632

COOLER, OIL

OIL COOLER - hydraulic oil

1шт.

26

113-107

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5, Full Thd

- hex head, 5/16" - 18NC x 3/4", plated

4шт.

26a

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Also mounts Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

28

S956614

LARGE PLATE

SHROUD - air intake

1шт.

29

S118475

SEAL

MOULDING - shroud, 120" (3048 mm)long

1шт.

30

S118954

STRIP

PLATE - lower

1шт.

31

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

33

195-103

WASHER,5/16"

- flat, , plated 5/16"

3шт.
