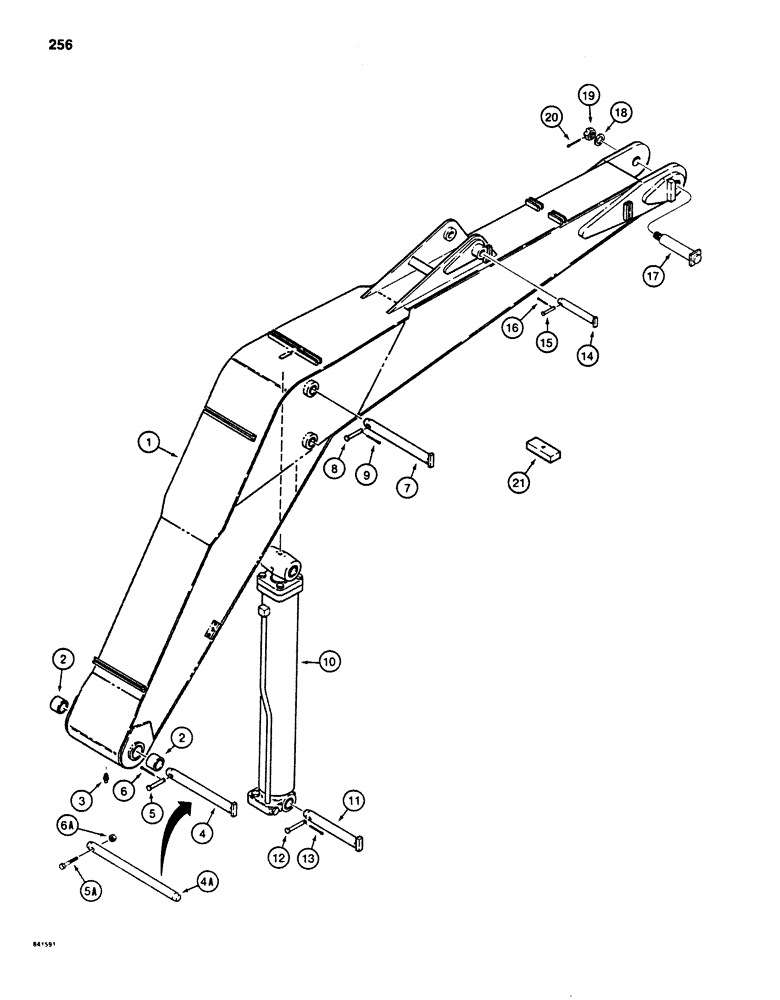

Запчасти Case 880D (256) - BOOM AND PINS (09) - BOOMS
№
Артикул
Название
Примечание
Количество
1
S954058
BOOM
- weldment frame assembly, Includes: Ref. 2 and 3
1шт.
2
S210602
BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L
- boom
2шт.
3
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT, remove when attaching lubrication lines
1шт.
4
S201023
PIN
- boom to turntable, used before PIN, Serial Range: -6205681
1шт.
4a
S242327
PIN
- boom to turntable, used on PIN and after, Start Serial: 6205681
1шт.
5
S61976
CLEVIS PIN
- 5/8" diameter x 4-5/8" grip length, used before PIN, Serial Range: -6205681
1шт.
5a
26-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8
- hex head, 3/4" - 10NC x 4-1/2", grade 8, used on PIN and after, Start Serial: 6205681
1шт.
6
132-48
COTTER PIN,1/8" x 1"
PIN, Split (Cotter), , Used before PIN 1/8" x 1", Serial Range: -6205681
1шт.
6a
131-16
LOCK NUT,3/4"-10, GB
LOCKNUT, , Used on PIN and after 3/4"-10, GB, Start Serial: 6205681
1шт.
7
S201024
PIN
- boom cylinder rod, Serial Range: end-boom
1шт.
8
S61972
PIN
CLEVIS PIN - 1/2" diameter x 3-1/4" grip length
1шт.
9
132-48
COTTER PIN,1/8" x 1"
PIN, Split (Cotter), 1/8" x 1"
1шт.
10
REF
INSTRUCTION
CYLINDER - boom, parts list Figure 200
1шт.
11
S242097
PIN
- boom, Serial Range: cylinder-turntable
1шт.
12
S61972
PIN
CLEVIS PIN - 1/2" diameter x 3-1/4" grip length
1шт.
13
132-48
COTTER PIN,1/8" x 1"
PIN, Split (Cotter), 1/8" x 1"
1шт.
14
S241330
PIN,37.8mm OD x 358.14mm L
- arm cylinder closed, Serial Range: end-boom
1шт.
15
S61972
PIN
CLEVIS PIN - 1/2" diameter x 3-1/4" grip length
1шт.
16
132-48
COTTER PIN,1/8" x 1"
PIN, Split (Cotter), 1/8" x 1"
1шт.
17
S220250
PIN ASSY.
PIN -, Serial Range: boom-arm
1шт.
18
95-40
WASHER,2 1/2" x 5" x .238"
- flat, 2-1/2"
1шт.
19
25-3032
SLOTTED NUT,2"-4.5, G5, Hvy
CASTLE NUT - hex, 2" - NC threads
1шт.
21
S74490
CLAMP
BLOCK - tapped for 1/2" bolts, accepts clamp bolts for auxiliary hydraulic
1шт.
lines if used
1шт.
Выбрано товаров: 25
