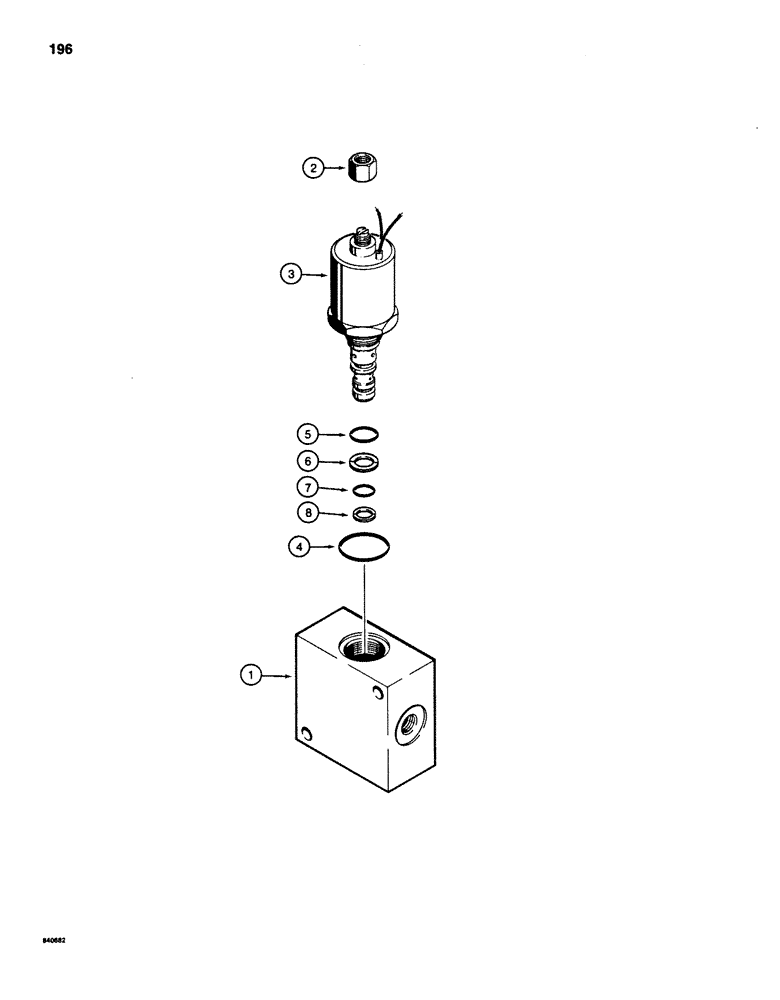

Запчасти Case 880D (196) - S237789 SOLENOID VALVE, FAST HOIST AND DRIVE BRAKE (07) - HYDRAULIC SYSTEM

S237789

VALVE

SOLENOID VALVE ASSEMBLY - fast hoist and drive brake, Includes: Ref. 1 - 8

1-2шт.

1

N9006

BODY

- solenoid valve

1шт.

S237942

VALVE

CARTRIDGE - solenoid valve, Includes: Ref. 2 - 8

1шт.

2

S109473

NUT

- special

1шт.

3

S116422

COIL

KIT

1шт.

5

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- intermediate, middle

1шт.

6

C11865

RING

BACKUP RING - middle O-ring

1шт.

7

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Small, inner

1шт.

8

S109475

BACK-UP RING

BACKUP RING - inner O-ring

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
