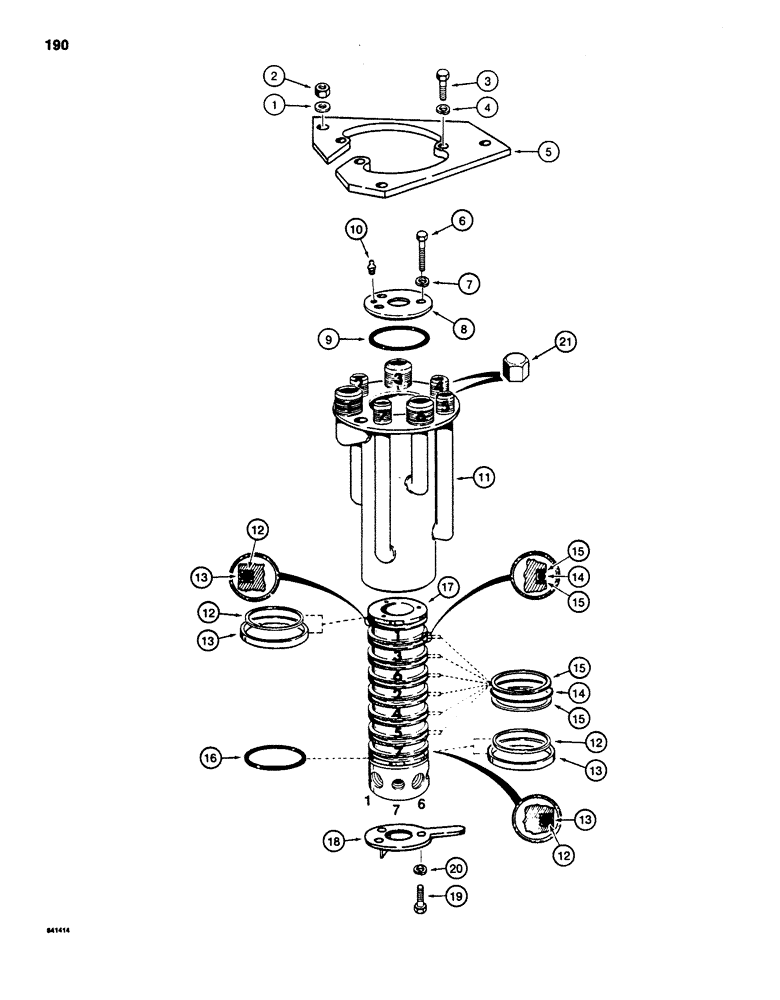

Запчасти Case 880D (190) - SEVEN PORT SWIVEL AND RELATED PARTS (07) - HYDRAULIC SYSTEM

1

195-104

WASHER,3/8"

- flat, 7/16", plated

3шт.

2

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

3шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

S204101

PLATE

- mounting, seven port swivel

1шт.

S618820

LINK

SWIVEL ASSEMBLY - hydraulic, seven port (Replaces S618678), Includes: Ref. 6 - 17

1шт.

DR0185-014 Ref: S956755 for Hyd. ftg. changes.

1шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

S242702

CAP

- bearing (Replaces S241730)

1шт.

DR0185-014 Ref: S956755 for Hyd. ftg. changes.

1шт.

9

S119791

SHIM

BEARING - cap

1шт.

Part of Seal Kit, P/N S119402

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

11

S618679

HOUSING

- swivel, not shown

1шт.

12

S118682

RING

SEAL - swivel shaft, square section

2шт.

Part of Seal Kit, P/N S119402

1шт.

13

S118683

SEAL

- slipper

2шт.

Part of Seal Kit, P/N S119402

1шт.

14

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- swivel shaft

6шт.

Part of Seal Kit, P/N S119402

1шт.

15

S76928

WASHER

BACKUP RING - shaft O-ring

12шт.

Part of Seal Kit, P/N S119402

1шт.

16

S76240

O-RING

- swivel shaft, bottom

1шт.

Part of Seal Kit, P/N S119402

1шт.

17

S618821

SHAFT

- swivel, with female ports (Replaces S617988)

1шт.

DR0185-014 Ref: S956755 for Hyd. ftg. changes.

1шт.

18

S237399

LARGE PLATE

PLATE - mounting, inner swivel

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

21

218-335

CAP,37 Degree, 1 1/16"-12

- tube, used on ports 4 and 5 on models without leveler

2шт.

Add (2) pcs 218-5157 plug to be used in 4 & 5 ports on units W/O leveler.

1шт.

S119402

SEAL KIT

- seal, Includes: Ref. 9, 12, 13, 14, 15, and 16

1шт.
