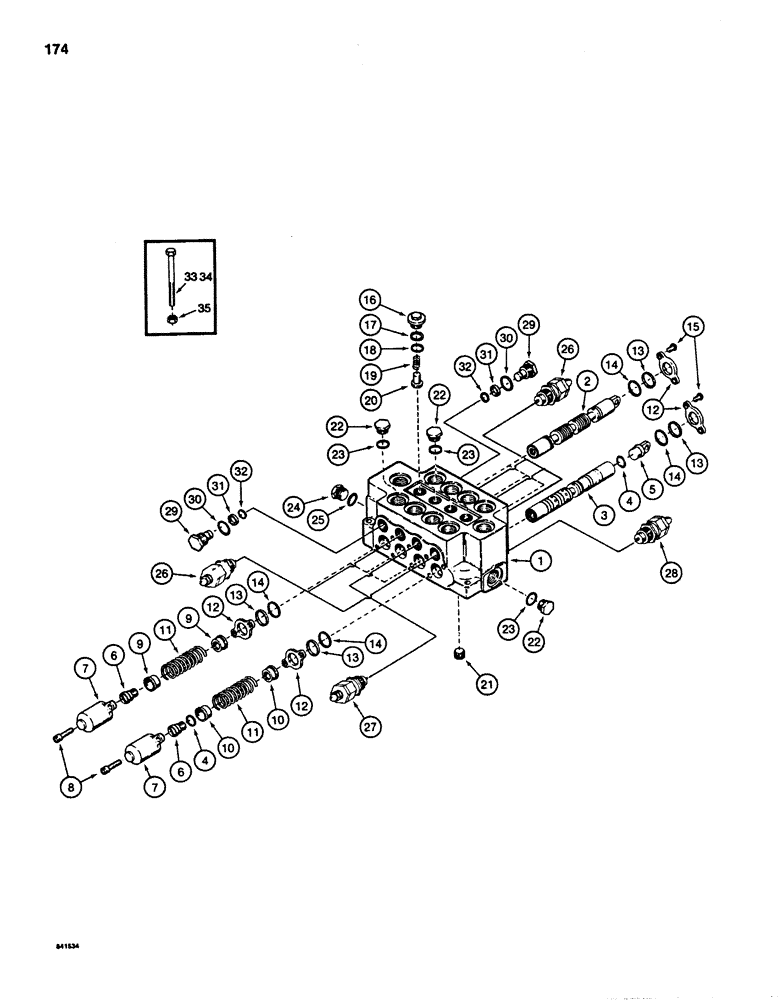

Запчасти Case 880D (174) - FOUR SPOOL VALVE, INSIDE (07) - HYDRAULIC SYSTEM

S516778

VALVE

CONTROL VALVE ASSEMBLY - inside, includes relief valves, Includes: Ref. 1 - 32

1шт.

S606891

VALVE

CONTROL VALVE ASSEMBLY - inside, basic valve without relief valves, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - left-hand and center

3шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - right-hand only

1шт.

5

S62289

END

EYE - right-hand spool

1шт.

6

S62290

BOLT

- special, spool ends

4шт.

7

S62278

CAP

- spool

4шт.

8

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - hex socket head, 3/8" - 16 NC x 1"

8шт.

9

S62288

SEAT

- spring, left-hand and center spools

6шт.

10

S107817

SEAT

- spring, right-hand spool

2шт.

11

S109959

SPRING

- spool centering

4шт.

12

S13829

PLATE

- seal retaining

8шт.

13

S62092

WIPER

- spool

8шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- spool

8шт.

15

61-68

HEX SOC SCREW,3/8"-16 x 1/2"

BOLT - hex socket head, 3/8" - 16 NC x 1/2"

8шт.

S105062

PLUG

ASSEMBLY - check valve, Includes: Ref. 16 - 18

4шт.

16

S105094

PLUG

- check valve

1шт.

17

S105095

RING

BACKUP RING - plug o-ring

1шт.

18

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- plug

1шт.

19

S13715

SPRING

- check valve

4шт.

20

S13716

VALVE POPPET

POPPET - check valve

4шт.

21

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex socket head, 3/8" NPT

2шт.

22

273916

PLUG,Hex, 1-5/16" - 12 ORB

RH end port and top ports, Includes Ref. 23 Hex Hd, 1 5/16"-12 ORB

3шт.

23

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

24

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- left-hand end port, Includes: Ref. 25

1шт.

25

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- plug

1шт.

26

S616868

VALVE

CIRCUIT RELIEF VALVE - parts list Figure 182

5шт.

27

S616863

VALVE

CIRCUIT RELIEF VALVE - crowd circuit rear port, parts list Figure 182

1шт.

28

S616868

VALVE

MAIN RELIEF VALVE - parts list Figure 182

1шт.

S81690

PLUG

ASSEMBLY - relief port, left-hand spool, Includes: Ref. 29 - 32

2шт.

29

NSS

NOT SOLD SEPARAT

PLUG - body

1шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug, outer

1шт.

31

S93829

BACK-UP RING,0.609" ID x 0.052" Width

BACKUP RING - inner o-ring

1шт.

32

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- inner

1шт.

33

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

34

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex head, 1/2" - 13 NC x 4-1/4", plated

2шт.

35

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking 1/2" - 13 NC, plated

3шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, right-hand spool ends

2шт.
