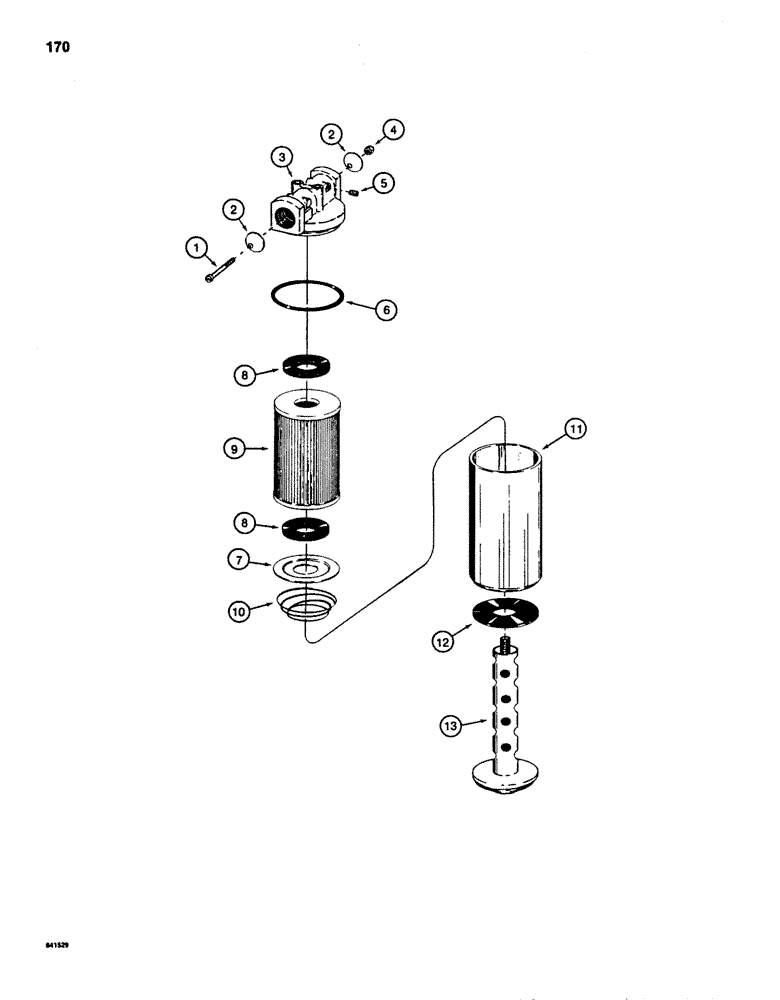

Запчасти Case 880D (170) - S209407 HYDRAULIC OIL SCREEN (07) - HYDRAULIC SYSTEM

S209407

FILTER

SCREEN ASSEMBLY - hydraulic oil, 100 micron, Includes: Ref. 1 - 13

1шт.

1

169-86

SCREW,Fil Hd, #8 - 32 x 1 3/4"

- fillister head, No. 8 - 32 NC x 1-3/4"

1шт.

2

T29785

VALVE

- bypass

2шт.

3

S60100

HEAD

- screen

1шт.

4

131-552

NUT,#8-32

NUT - hex, self-locking, No. 8 - 32 NC, special

1шт.

5

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG - hex socket head, 3/8" NPT

1шт.

6

T29789

SEALING RING,4.35" ID x 0.25" Width

O-RING - head to housing seal

1шт.

7

T42195

WASHER

- backup

1шт.

S233969

FILTER, ENGINE OIL

ELEMENT ASSEMBLY - screen, Includes: Ref. 8 and 9

1шт.

8

W12214

GASKET

- element

2шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - 100 mesh screen

1шт.

10

T29793

SPRING

- conical

1шт.

11

T29794

HOUSING

- screen

1шт.

12

T29795

GASKET

- lower

1шт.

13

T29796

SUPPORT

POST ASSEMBLY - center

1шт.
