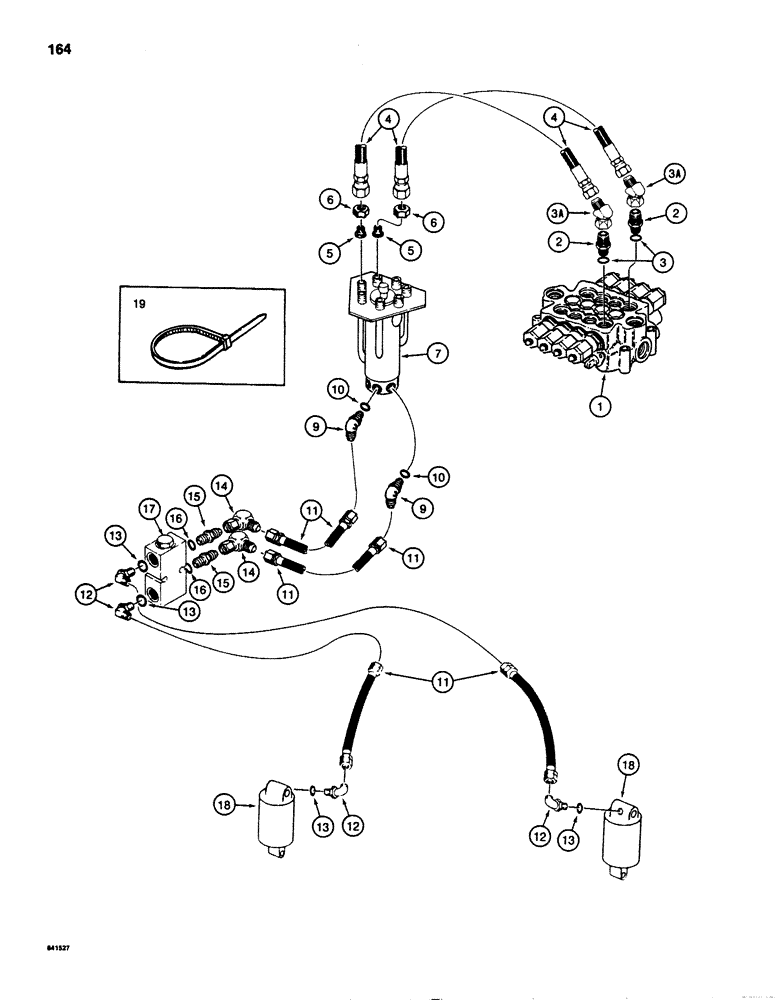

Запчасти Case 880D (164) - HYDRAULIC LEVELER LINES, MODELS WITHOUT AUXILIARY CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - outside, see Figures 178-180

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, control valve ports, Includes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

3a

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, if used

2шт.

4

S11231

HOSE ASSY.

HOSE - control valve to swivel, 68" (1727 mm) long

2шт.

5

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - reducer, at swivel

2шт.

6

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - sleeve, for 218-796 adapter

2шт.

7

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Figure 190

1шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, Includes: Ref. 10

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

11

S11226

HOSE

- to check valve and cylinders, 20" (508 mm) long

4шт.

S11226 Hose Replaced by S11227 Hose (2) Swivel to check Per ECS DR 8886-003.

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 13 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

4шт.

14

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, if used

2шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, if used, Incl. Ref 16

2шт.

17

REF

INSTRUCTION

CHECK VALVE - leveler, parts list Figure 192

1шт.

18

S56810

CYLINDER

- leveler, parts list Figure 204

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
