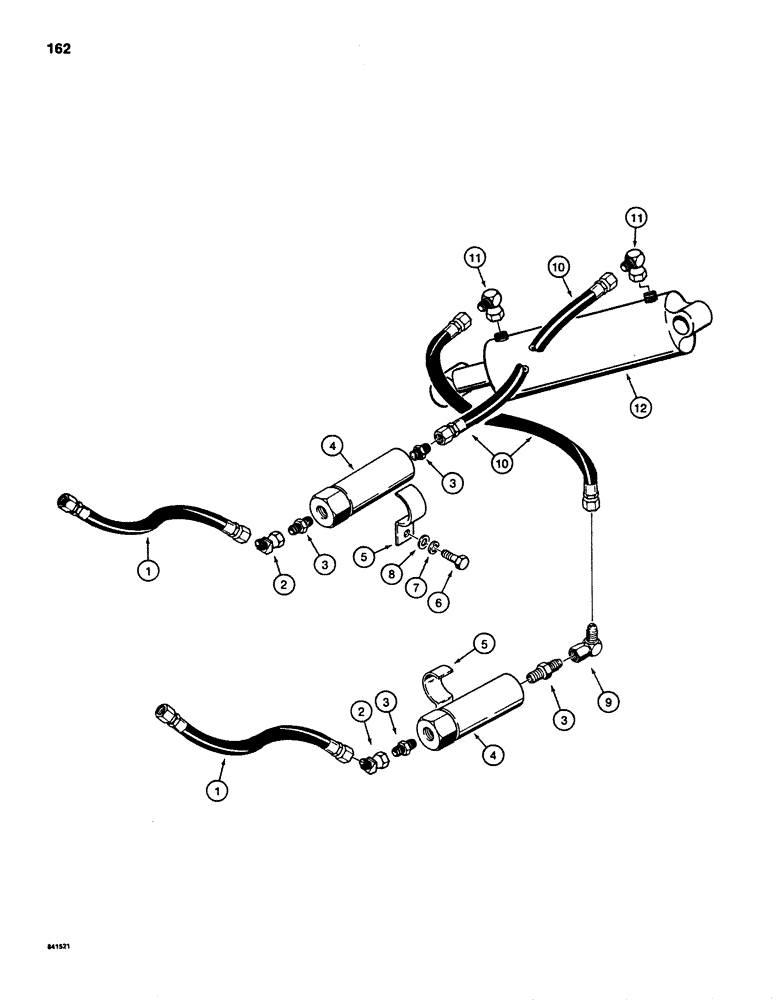

Запчасти Case 880D (162) - WRIST-O-TWIST HYDRAULIC LINES (07) - HYDRAULIC SYSTEM

1

S120677

HOSE ASSY.

HOSE - to flow control valve, 26" (660 mm) long (Replaces S11236)

2шт.

Replaced by S120677 per ECS DR0186-064 Wrist O Twist only.

1шт.

2

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree

2шт.

3

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, at valve

4шт.

4

T54632

VALVE

- flow control, parts list Figure 198

2шт.

5

L32065

CLAMP

- T54632 valve

2шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened

2шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree

2шт.

10

S120676

HOSE ASSY.

HOSE - to cylinder, 28" (711 mm) long (Replaces S11230)

2шт.

Replaced by S120676 per ECS DR0186-064 Wrist O Twist only.

1шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, at cylinder

2шт.

12

S37583

CYLINDER

- wrist-o-twist, parts list Figure 206

1шт.
