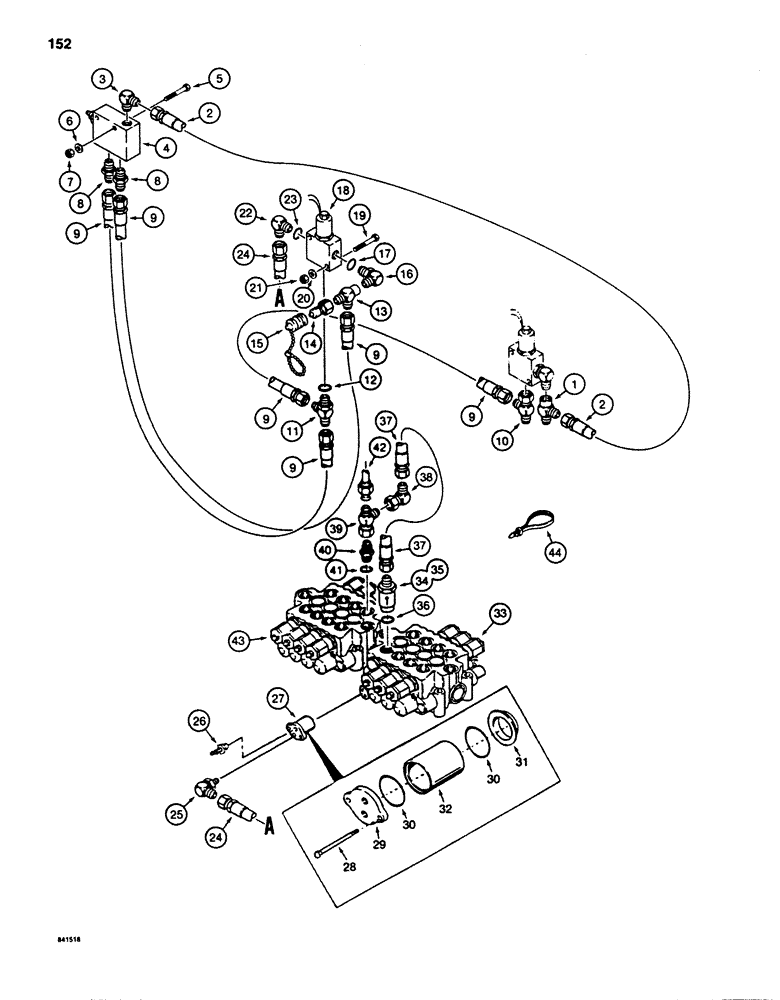

Запчасти Case 880D (152) - FAST HOIST LINES (07) - HYDRAULIC SYSTEM

1

S114909

TEE

- at track brake valve, same as Ref. 10A on Figure 130

1шт.

2

S77121

HOSE

- brake valve to pressure reducing valve, 20" (508 mm) long

1шт.

3

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

1шт.

4

S236348

VALVE

- pressure reducing, parts list Figure 194

1шт.

5

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

6

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

8

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

2шт.

9

S77121

HOSE

- to solenoid valves, 20" (508 mm) long

3шт.

10

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- at drain line, same as ref. 21A on Figure 130

1шт.

11

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- bottom port of solenoid valve, Includes: Ref. 12

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

13

S114909

TEE

- solenoid valve to quick disconnect coupling

1шт.

14

S206607

DISC

COUPLING - quick disconnect

1шт.

15

S206608

CAP

- dust

1шт.

16

218-5302

ELBOW

- at solenoid valve, Includes: Ref. 17

1шт.

17

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

18

S237789

VALVE

- solenoid, parts list Figure 196

1шт.

19

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20 NC x 2-1/4", plated

2шт.

20

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.

21

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

2шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, Includes: Ref. 23

1шт.

23

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

24

S227396

HOSE ASSY.

HOSE - solenoid valve to control valve, 50" (1270 mm) long

1шт.

25

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, at fast hoist spool

1шт.

26

D46258

PLUG

SCREW - bleeder, at fast hoist spool

1шт.

27

S232345

KIT

- spool end cap, Includes: Ref. 28 - 33

1шт.

28

61-652

CAPSCREW,3/8" - 16 x 3 1/4"

BOLT - hex socket head, 3/8" - 16NC x 3-1/4"

2шт.

29

S111269

HEAD

CAP - end

1шт.

30

S6394

O-RING

- tube

1шт.

31

S111267

WASHER

- retainer

1шт.

32

S111268

SLEEVE

- spool end

1шт.

33

REF

INSTRUCTION

CONTROL VALVE - inside, see Figures 174,176

1шт.

34

S93154

VALVE

CHECK VALVE - fast hoist line, Includes: Ref. 35

1шт.

35

A13084

O-RING,12.37" ID x 1.443" OD x 0.103"

- check valve body to check valve fitting, not shown

1шт.

36

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- check valve to control valve

1шт.

37

S120471

HOSE ASSY.

HOSE - inside control valve to outside control valve, 42" (1067 mm) long

1шт.

38

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree

1шт.

39

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- hoist and fast hoist lines

1шт.

40

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, hoist port, Incl. Ref. 41

1шт.

41

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

42

S516687

TUBE ASSY.,1" OD

TUBE - boom cylinder line, see Figure 150

1шт.

43

REF

INSTRUCTION

CONTROL VALVE - inside, see Figures 178,180

1шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
