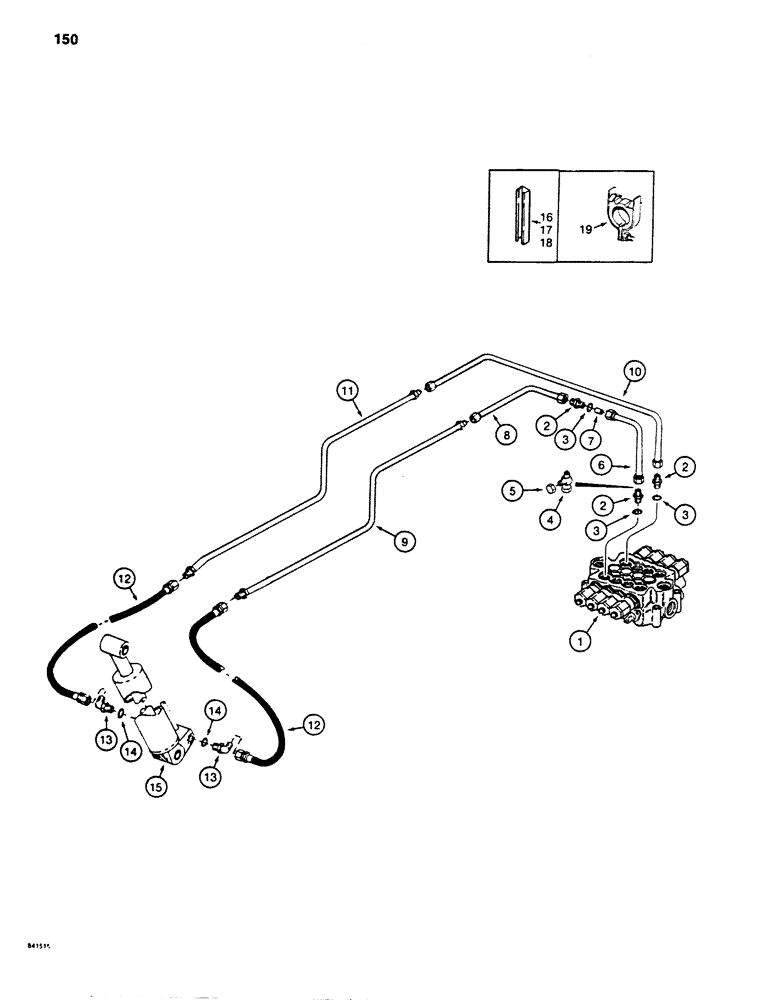

Запчасти Case 880D (150) - BOOM CYLINDER LINES (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - outside, see Figures 178,180

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 3

3шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- at front control valve port

1шт.

5

218-758

CAP,37 Degree, 1 5/16"-12

- tee, not used when fast hoist is used

1шт.

6

S516687

TUBE ASSY.,1" OD

TUBE - from front control valve port

1шт.

7

D56252

FITTING

RESTRICTOR - hydraulic oil flow

1шт.

8

S242360

TUBE ASSY.,1" OD x 9, 5" L

TUBE - from front control valve port

1шт.

9

S514313

TUBE ASSY.,1" OD

TUBE - to hoist cylinder, left-hand

1шт.

10

S516686

TUBE ASSY.,1" OD

TUBE - from rear control valve port

1шт.

11

S514312

TUBE ASSY.,1" OD

TUBE - to boom cylinder, right-hand

1шт.

12

D44752

HOSE

- to boom cylinder, 28" (711 mm) long

2шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, at boom cylinder, Incl. Ref. 14

2шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

15

REF

INSTRUCTION

CYLINDER - boom, see Figure 200

1шт.

16

S98267

BRACKET

CHANNEL - tube clamp, 6" (152 mm) long

1шт.

17

S98413

SUPPORT

CHANNEL - tube clamp, 5" (127 mm) long

1шт.

18

S91603

CHANNEL

- tube clamp, 4" (102 mm) long

1шт.

18

S91602

CLAMP

- tube

1шт.
