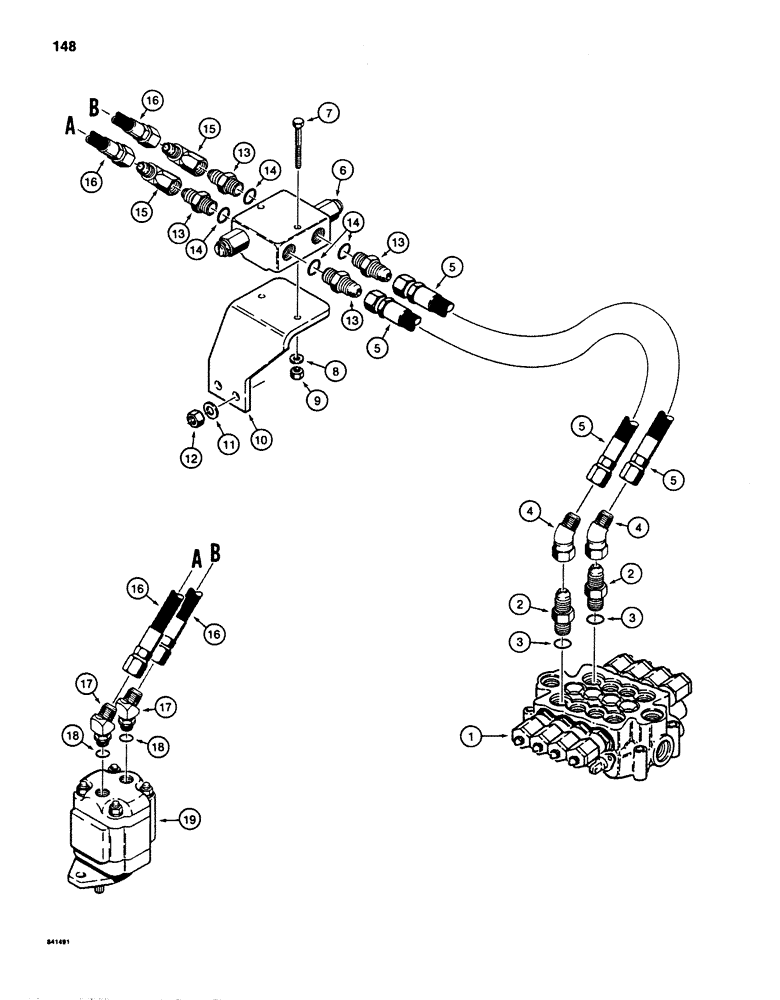

Запчасти Case 880D (148) - SWING MOTOR HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - inside, see Figures 174-176

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, at control valve ports, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree

1шт.

5

S15468

HOSE

- control valve to relief valve, 28" (711 mm) long

1шт.

6

S236820

VALVE

RELIEF VALVE - crossover, parts list Figure 186

1шт.

7

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex head, 5/16" - 18 NC x 4-1/2", plated

2шт.

8

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 5/16", hardened

2шт.

9

131-462

NUT,5/16"-18

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

10

S516691

BRACKET

- relief valve mounting

1шт.

11

S95569

WASHER

- flat, 1/2", hardened

2шт.

12

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2", plated

2шт.

13

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, at relief valve ports, Incl. Ref. 14

4шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

15

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

at right-hand relief valve ports 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

16

S400834

HOSE

- to swing motor, 36-1/2" (927 mm) long

2шт.

17

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, at swing motor ports, Includes: Ref. 18

2шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

19

S33530

MOTOR

- swing, hydraulic, parts list Figure 188

1шт.
