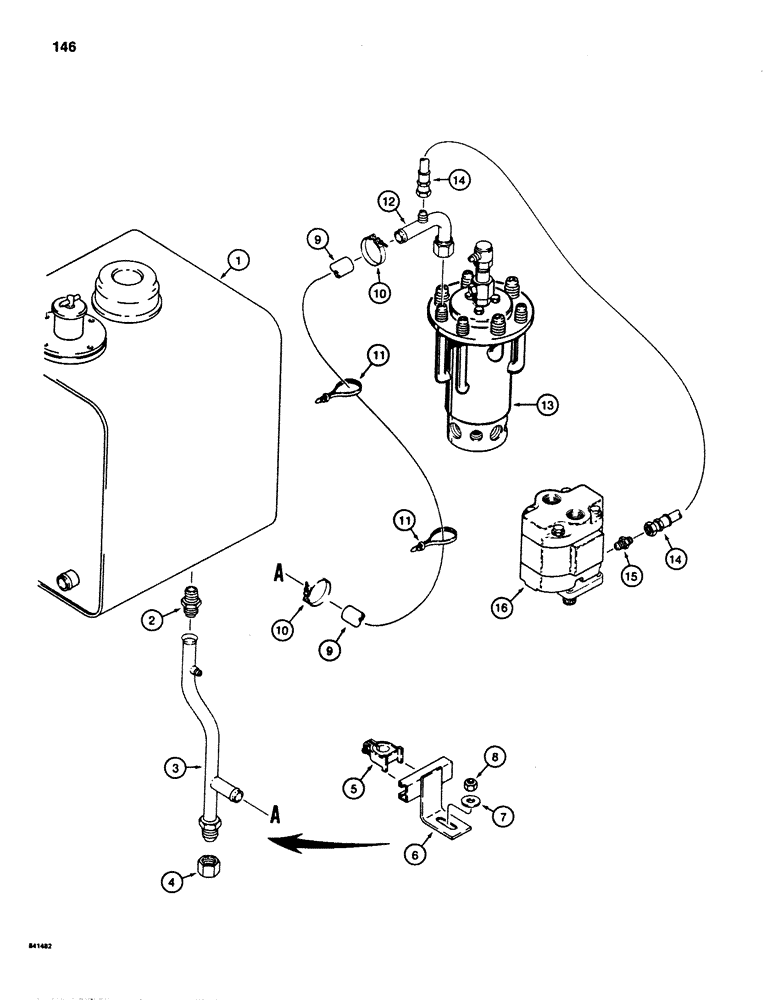

Запчасти Case 880D (146) - HYDRAULIC DRAIN LINES (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

RESERVOIR - hydraulic oil, see Figure 138

1шт.

2

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, reservoir bottom

1шт.

3

S516728

TUBE ASSY.,1" OD

Reservoir drain

1шт.

4

218-758

CAP,37 Degree, 1 5/16"-12

Reservoir drain

1шт.

5

S91602

CLAMP

Drain tube

1шт.

6

S242437

BRACKET

Clamp support

1шт.

7

S95569

WASHER

Flat, 1/2", hardened

1шт.

8

131-70

NUT,1/2"-13, GB

1шт.

9

REF

INSTRUCTION

HOSE - drain, from swivel tube, 57" (1448 mm) long, cut from S118383, see below

1шт.

10

214-378

CLAMP,1.40"-1.56", T-Bolt

Hose

2шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

1шт.

12

S229693

TUBE,1" OD x 3, 3.75" L

At swivel port No. 1

1шт.

13

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Figure 190

1шт.

14

S241218

HOSE ASSY.

Motor drain, 36" (914 mm) long

1шт.

15

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Straight, motor drain port

1шт.

16

S33530

MOTOR

SWING - parts list Figure 188

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1шт.
