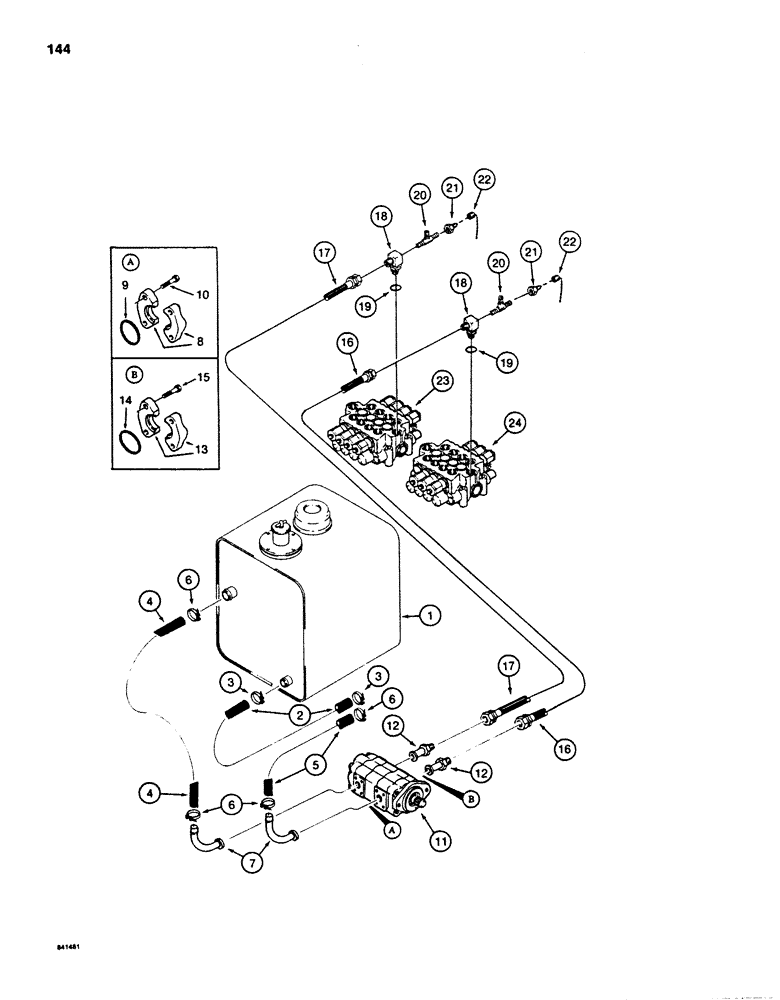

Запчасти Case 880D (144) - HYDRAULIC PUMP LINES (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

RESERVOIR - hydraulic oil, see Figure 138

1шт.

2

REF

INSTRUCTION

HOSE - to hydraulic filter, 40" (1016 mm) long, cut from S118465, see below

1шт.

3

214-371

CLAMP,1.56"-1.81", T-Bolt

Hose

2шт.

4

REF

INSTRUCTION

HOSE - reservoir to pump, 27" (686 mm) long, cut from S118381, see below

1шт.

5

REF

INSTRUCTION

HOSE - from hydraulic filters, 45" (1143 mm) long, cut from S118381, see below

1шт.

6

S85429

CLAMP

Hose (Replaces 214-372)

4шт.

7

NLS

NO LONGER SERVICED

TUBE - pump inlet

2шт.

8

A14157

FLANGE

SPLIT - tube

4шт.

9

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Tube

2шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

11

S512441

PUMP

Hydraulic, parts list Figure 172

1шт.

12

S232092

TUBE

Pump outlet

2шт.

13

A12306

FLANGE

SPLIT - tube

4шт.

14

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

Tube

2шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

16

S120471

HOSE ASSY.

To inside control valve, 42" (1067 mm) long

1шт.

17

S235936

HOSE

To outside control valve, 49" (1245 mm) long

1шт.

18

S113093

ELBOW

90 degree, at control valves, Includes: Ref. 19

2шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Elbow

1шт.

20

217-1273

TEE,Male, 1/4"-18

Brake lines, see Figure 130 for check valves and brake lines

2шт.

21

S206607

DISC

COUPLING - quick disconnect

2шт.

22

S206608

CAP

Dust

2шт.

23

REF

INSTRUCTION

CONTROL VALVE - outside, see Figures 178-180

1шт.

24

REF

INSTRUCTION

CONTROL VALVE - inside, see Figures 174-176

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

Bulk roll

1шт.

S118381

HOSE,1.50" ID x 84.00", SAE 100R4

1шт.
