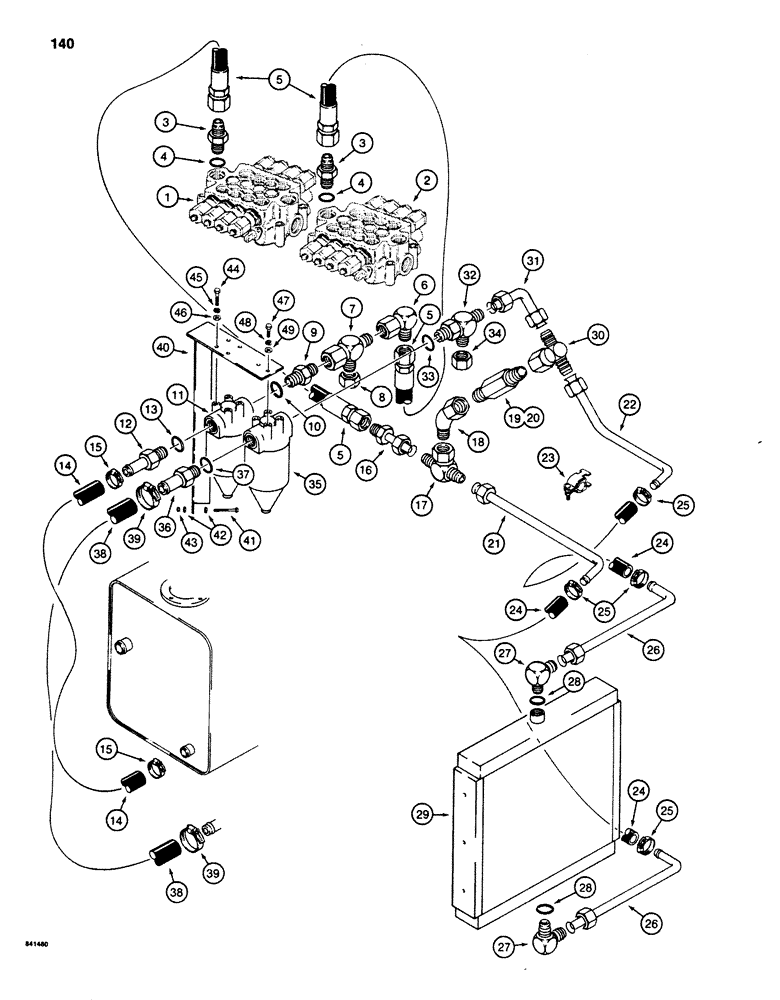

Запчасти Case 880D (140) - HYDRAULIC OIL FILTER AND COOLER LINES (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - outside, parts list Figures 178-180

1шт.

2

REF

INSTRUCTION

CONTROL VALVE - inside, parts list Figures 174-176

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, at control valve ports, Incl. Ref. 4

2шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Adapter

1шт.

5

S120471

HOSE ASSY.

From control valves, 42" (1067 mm) long

2шт.

6

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

Hose to tee

1шт.

7

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

At filter

1шт.

8

218-758

CAP,37 Degree, 1 5/16"-12

Tee

1шт.

9

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, filter inlet port, Includes: Ref. 10

1шт.

10

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Adapter

1шт.

11

S227285

FILTER ASSY

Hydraulic oil, parts list Figure 168

1шт.

12

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Stem - filter outlet port, Incl. Ref. 13

1шт.

13

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Stem fitting

1шт.

14

REF

INSTRUCTION

HOSE - filter to reservoir, 40" (1016 mm) long, cut from S118465, see below

1шт.

15

214-371

CLAMP,1.56"-1.81", T-Bolt

Hose

2шт.

16

S241609

TUBE ASSY.,1.25" OD x 6.5" L

Hose to tee

1шт.

17

218-839

TEE,37 Degree, 1 5/8"-12 x 1 5/8"-12, Fem Sw Br

Lower cooler line

1шт.

18

218-5177

ELBOW,45 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Female JIC

Tee to check valve

1шт.

19

S105386

VALVE

CHECK - return line, Includes: Ref. 20

1шт.

20

A13084

O-RING,12.37" ID x 1.443" OD x 0.103"

Check valve body to fitting, not shown

1шт.

21

S241032

TUBE ASSY.,1.25" OD

To cooler, lower

1шт.

22

S241031

TUBE ASSY.,1.25" OD

To cooler, upper

1шт.

23

S93266

CLAMP

Tube, 1-1/4"

3шт.

24

REF

INSTRUCTION

HOSE - cooler lines, 35" (889 mm) long, cut from S118465, see below

2шт.

25

214-371

CLAMP,1.56"-1.81", T-Bolt

Hose

4шт.

26

S241033

TUBE ASSY.,1.25" OD x 17.7, 5.5" L

Cooler inlet and outlet

2шт.

27

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

At cooler ports, Includes: Ref. 28

2шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Elbow

1шт.

29

A171632

COOLER, OIL

Hydraulic, see Figure 10 for attaching hardware

1шт.

30

218-839

TEE,37 Degree, 1 5/8"-12 x 1 5/8"-12, Fem Sw Br

Upper cooler line

1шт.

31

S241034

TUBE ASSY.,1.25" OD x 5.12, 5.12" L

Tee to tee

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

Bulk length

1шт.

32

218-5249

TEE,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

At screen inlet port, Includes: Ref. 33

1шт.

33

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Tee

1шт.

34

218-759

CAP,37 Degree, 1 5/8"-12

Tee

1шт.

35

S209407

FILTER

SCREEN - hydraulic oil, parts list Figure 171

1шт.

36

217-176

FITTING,1-1/2" Hose Barb x 1-5/8" - 12 Male ORB

STEM - screen outlet port

1шт.

37

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Stem fitting

1шт.

38

REF

INSTRUCTION

HOSE - screen to pump, 45" (1143 mm) long, cut from S118381, see below

1шт.

39

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

Hose

2шт.

40

S240996

BRACKET

Filter and screen mounting

1шт.

41

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

42

S95569

WASHER

Flat, 1/2", hardened

4шт.

43

131-70

NUT,1/2"-13, GB

2шт.

44

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

45

192-21

LOCK WASHER,3/8"

4шт.

46

195-103

WASHER,5/16"

Flat, 3/8", plated

4шт.

47

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

48

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

49

195-521

WASHER,5/16", SAE

2шт.

S118381

HOSE,1.50" ID x 84.00", SAE 100R4

1шт.
