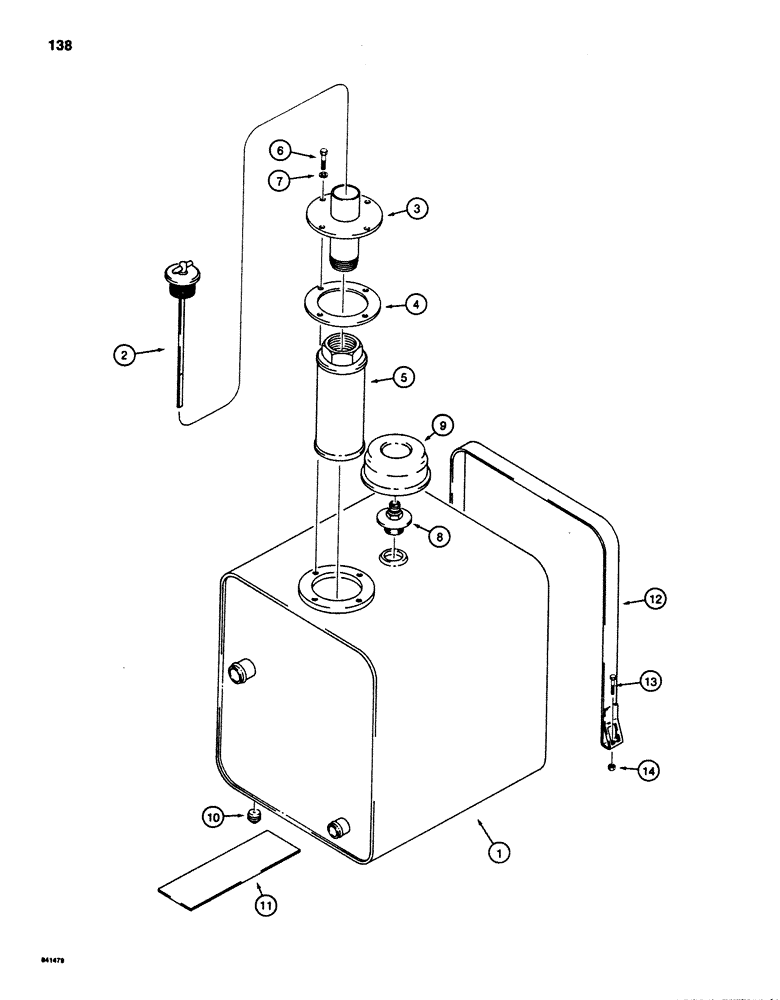

Запчасти Case 880D (138) - HYDRAULIC RESERVIOR (07) - HYDRAULIC SYSTEM

1

S617343

TANK, HYDRAULIC OIL

RESERVIOR - hydraulic oil

1шт.

Discard & adopt S618894 Hyd Oil Tank with S107269 Hyd oil sight gauge - Also adopt cap S230688 oil fill.

1шт.

2

S118913

DIPSTICK

ASSEMBLY - hydraulic oil reservoir

1шт.

3

S240992

PIPE ASSY.

ADAPTER - oil fill

1шт.

S240992 Adapter - Discard & adopt S242735 Pipe Assy per ECS #DR8885-002.

1шт.

4

S118914

GASKET

-, Serial Range: adapter-reservoir

1шт.

5

S514984

FILTER, ENGINE OIL

SCREEN - hydraulic oil reservoir

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

8

S115101

ADAPTER

-, Serial Range: breather-reservoir

1шт.

9

S115102

AIR CLEANER

BREATHER - hydraulic oil reservoir

1шт.

10

221-845

PLUG,Hex Soc, 3/4"-14

- drain, 3/4" NPT

1шт.

11

S94118

PAD

- rubber

2шт.

12

S92073

STRAP

- reservoir mounting

2шт.

13

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex head, 3/8" - 16 NC x 1-3/4", plated

4шт.

14

131-52

NUT,3/8"-16, GC

NUT - hex, 3/8" - 16NC, plated

4шт.
