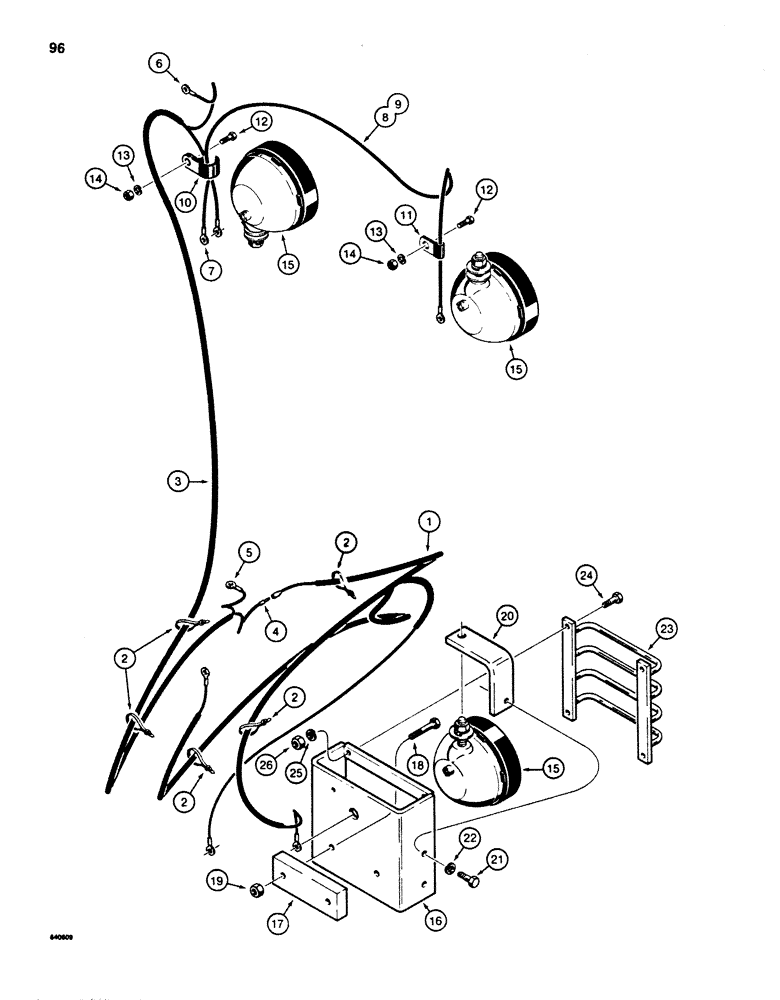

Запчасти Case 880D (096) - ELECTRICAL CIRCUIT FOR WORK LAMPS (06) - ELECTRICAL SYSTEMS

1

S239448

HARNESS

Front work lamps

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

1шт.

3

REF

INSTRUCTION

WIRE - to LH dipper lamp, 400" (10.16 mm) long, cut from S118482, see below

1шт.

4

223-191

TERMINAL CONNECTOR,14 - 16

Wire to harness

1шт.

5

223-61

TERMINAL CONNECTOR,14 - 16

Eye, ground, at turntable

1шт.

6

223-62

SPARE PART Eye, ground, at dipper

1шт.

7

223-59

TERMINAL CONNECTOR

Eye, at dipper lamp

1шт.

8

S237762

ELECTRICAL WIRE

WIRE Between dipper lamps

1шт.

9

REF

INSTRUCTION

LOOM - wire, 36" (914 mm) long, cut from S118377, see below

1шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Wires at LH lamp

1шт.

11

S15543

CLAMP,7/16", Insul, 1/2" Bolt

Wire at RH lamp

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

15

D51222

LIGHT ASSY.

Work, parts list Figure 98

4шт.

16

S212579

GUARD

Housing - work lamp

4шт.

17

S86493

SPACER

Housing, used on turntable lamp mounting only

2шт.

18

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

4шт.

19

131-492

NUT,1/2"-13

4шт.

20

S222287

BRACKET

Work lamp

4шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

4шт.

23

S212578

PROTECTOR

GUARD - work lamp

4шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

16шт.

25

192-21

LOCK WASHER,3/8"

16шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

16шт.

S118482

CABLE

Wire - double, 600 (15.24 m) long

1шт.

S118377

LOOM

Wire, 240" (6.10 m) long

1шт.
