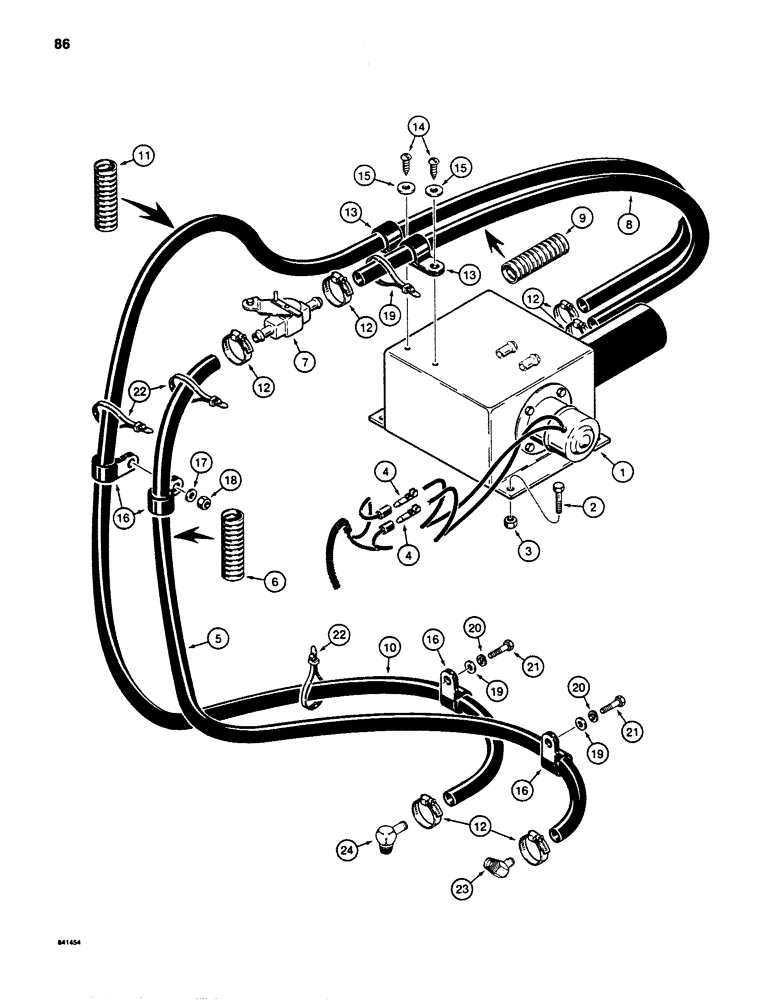

Запчасти Case 880D (086) - HEATER AND HOSES (06) - ELECTRICAL SYSTEMS

1

S240031

HEATER

ASSEMBLY - parts list Figure 88

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

4шт.

4

223-191

TERMINAL CONNECTOR,14 - 16

Electrical, female

2шт.

5

REF

INSTRUCTION

HOSE - engine to shutoff valve, 5/8" (16 mm) ID x 110" (2794 mm) long, cut from A42610 see below

1шт.

6

REF

INSTRUCTION

SLEEVE - hose, 1" (25 mm) ID x 107" (2718 mm) long, cut from S119717, see below

1шт.

7

S223937

VALVE

Heater shutoff

1шт.

This valve doesn't have a cable and is hand operated.

1шт.

8

REF

INSTRUCTION

HOSE - shutoff valve to heater, 5/8" (16 mm) ID x 24" (610 mm) long, cut from A42610 see below

1шт.

9

REF

INSTRUCTION

SLEEVE - hose, 1" (25 mm) ID x 22" (560 mm) long, cut from S119717, see below

1шт.

10

REF

INSTRUCTION

HOSE - heater outlet to engine, 5/8" (16 mm) ID x 185" (4699 mm) long, cut from A42610 see below

1шт.

11

REF

INSTRUCTION

SLEEVE - hose, 1" (25 mm) ID x 182" (4623 mm) long, cut from S119717, see below

1шт.

12

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

6шт.

13

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

Hoses at top of heater

2шт.

14

187-331

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

2шт.

15

195-513

WASHER,#10

2шт.

16

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

Hose

4шт.

17

195-33

WASHER,1/2"

Heater hose clamps at turntable

1шт.

18

131-70

NUT,1/2"-13, GB

Heater hose clamps at turntable

1шт.

19

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Heater hose clamps at engine

2шт.

20

892-1112

LOCK WASHER,M12

Heater hose clamps at engine

2шт.

21

826-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

Heater hose clamps at engine

2шт.

Discard & adopt 814-12030 per ECS DR0185-085 (length change).

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

1шт.

23

217-425

45 ELBOW,5/8" Hose Barb x 3/4" NPTF

ELBOW, at engine head

1шт.

24

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

At engine water pump

1шт.

A42610

LARGE HOSE

HOSE,LARGE Bulk roll, 5/8" (16 mm) ID x 50' (1524 cm) long

1шт.

S119717

CONDUIT

SLEEVE - bulk roll, 1" (25 mm) ID x 192" (4877 mm) long

1шт.
