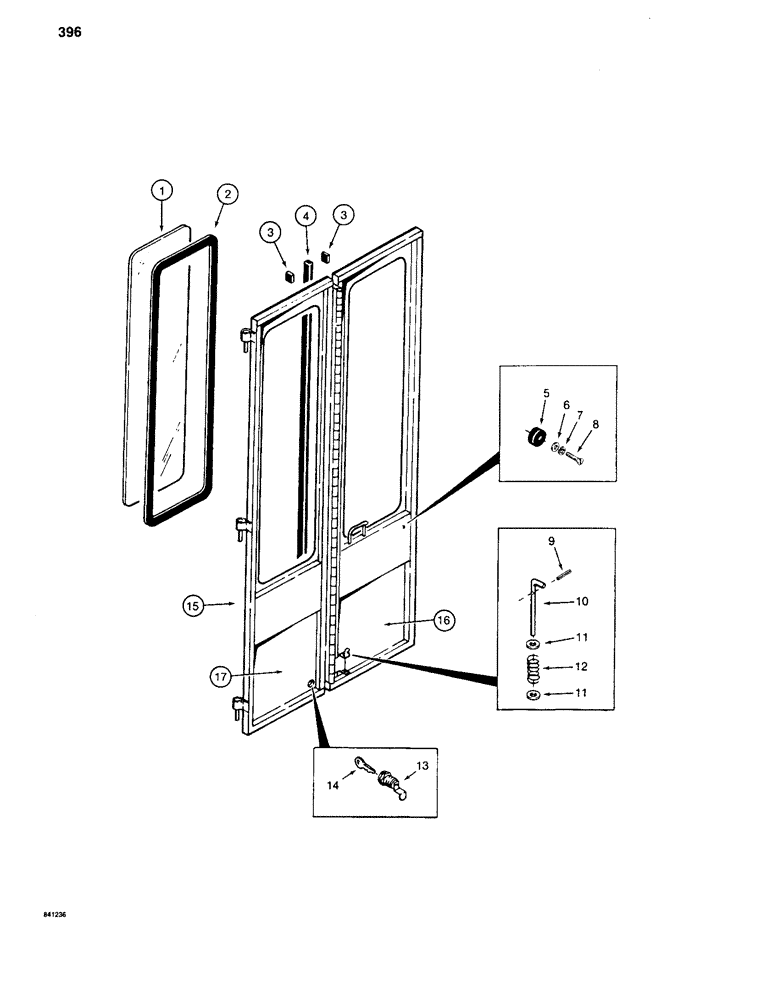

Запчасти Case 880C (396) - CAB DOOR, BEFORE PIN 6205236 (05) - UPPERSTRUCTURE CHASSIS

S955039

DOOR ASSEMBLY - cab, Includes: Ref. 1 - 17

1шт.

1

REF

INSTRUCTION

LEXAN - window, see Figure 394

2шт.

2

REF

INSTRUCTION

SEAL - window, 92" (2337 mm) long, cut from S118468, see below

2шт.

3

REF

INSTRUCTION

SEAL - 1.5" (38 mm) long, cut from D70611, see below

4шт.

4

REF

INSTRUCTION

SEAL - 59" (1499 mm) long, cut from D70611, see below

1шт.

5

S109512

BUMPER

- door stop

1шт.

6

S109505

WASHER - fender

1шт.

7

195-513

WASHER,#10

- flat, No. 10

1шт.

8

174-102

SCREW,Sl Rnd Hd, #10 - 32 x 1"

MACHINE SCREW - No. 10 - 32 NF x 1"

1шт.

9

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

10

S238775

PIN

- latch

1шт.

11

195-5

WASHER

- pin

2шт.

12

S62977

SPRING

- latch

1шт.

S90080

LOCK

ASSEMBLY - door, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

LOCK - less key

1шт.

14

S94605

KEY

- National

1шт.

14

S104954

KEY

- Chicago

1шт.

15

NSS

NOT SOLD SEPARAT

DOOR - weldment

1шт.

16

REF

INSTRUCTION

INSULATION - door, see Figure 404

1шт.

17

REF

INSTRUCTION

INSULATION - door, see Figure 404

1шт.

S118468

SEAL

- window, bulk, 180" (4572 mm) long

1шт.

D70611

RUBBER JOINT

SEAL - door, bulk, 600" (15240 mm) long

1шт.

S95517

ADHESIVE

- 30 oz. container, used on cab window seals

1шт.
