Запчасти Case 880C (370) - SEAT (05) - UPPERSTRUCTURE CHASSIS

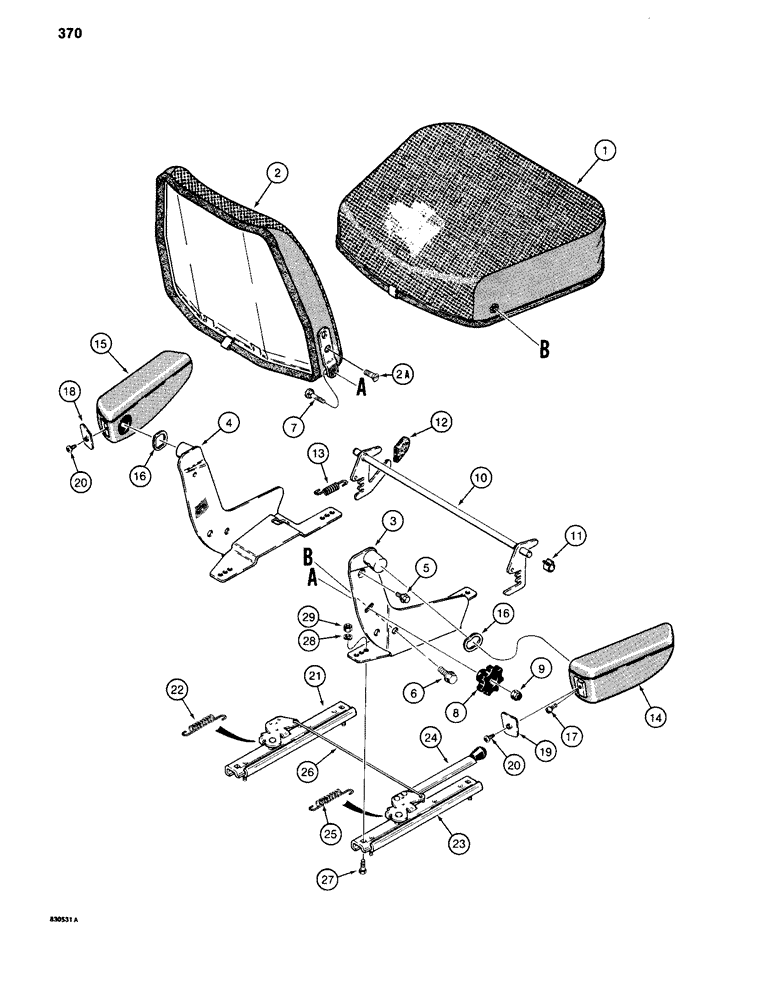

Схема запчастей Case 880C - (370) - SEAT (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

S612692

SEAT ASSY.

SEAT ASSEMBLY - operator's, black color, if used, Includes: Ref. 1 - 29

1шт.

S617794

SEAT ASSY.

SEAT ASSEMBLY - operator's, brown color, if used, Includes: Ref. 1 - 29

1шт.

1

S114279

CUSHION

- seat bottom, black seat

1шт.

1

N8530

CUSHION

- seat bottom, brown seat

1шт.

2

S114280

BACKREST

CUSHIONG - seat back, black seat

1шт.

2

N8531

CUSHION

- seat back, brown seat, Includes: Ref. 2A

1шт.

2a

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

MACHINE SCREW - flat head, slotted, 3/8" - 16 NC x 1"

2шт.

3

S114281

BRACKET - seat mounting, right-hand side, black seat

1шт.

3

N8532

BRACKET

- seat mounting, right-hand side, brown seat

1шт.

4

S114282

BRACKET

- seat mounting, left-hand side, black seat

1шт.

4

N8533

BRACKET

- seat mounting, left-hand side, brown seat

1шт.

5

A48346

BOLT

- special, seat, Serial Range: back-bracket

2шт.

6

A48347

BOLT

- special, seat, Serial Range: bottom-bracket

2шт.

7

A45527

CARRIAGE BOLT

- shoulder, seat back adjustment

2шт.

8

A45487

BUTTON

KNOB - tilt, seat back

2шт.

9

131-822

NUT,3/8"-16

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

10

N8534

ASSEMBLY

HANDLE AND LEVER - tilt, seat bottom

1шт.

11

A45482

BUSHING

SPACER - tilt lever

2шт.

12

A47347

CAP

- tilt lever

1шт.

13

A45471

- tilt lever

2шт.

14

A45489

ARMREST

- right-hand side, black seat

1шт.

14

N8536

ARMREST

- right-hand side, brown seat

1шт.

15

A45488

ARMREST

- left-hand side, black seat

1шт.

15

N8535

ARM

REST - left-hand side, brown seat

1шт.

16

A47352

WASHER

- spring type, Serial Range: armrest-bracket

2шт.

17

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest to bracket Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

18

A45583

PLATE

- cover, left-hand armrest

1шт.

19

A45584

COVER

PLATE - cover, right-hand armrest

1шт.

20

187-835

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - pan head, self-tapping, No. 10 - 16 NC x 5/8"

2шт.

A45523

SLIDE

ASSEMBLY - seat adjusting, left-hand side, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

SLIDE - seat adjusting

1шт.

22

L35503

SPRING

- slide latch

1шт.

S114284

SLIDE

AND HANDLE ASSEMBLY - seat adjusting, right-hand side, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

SLIDE - seat adjusting

1шт.

24

S115783

HANDLE

- seat adjusting

1шт.

25

L35503

SPRING

- slide latch

1шт.

26

S114285

ROD

- connecting, slide latch

1шт.

27

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

29

129-518

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

4шт.

Выбрано товаров: 40
