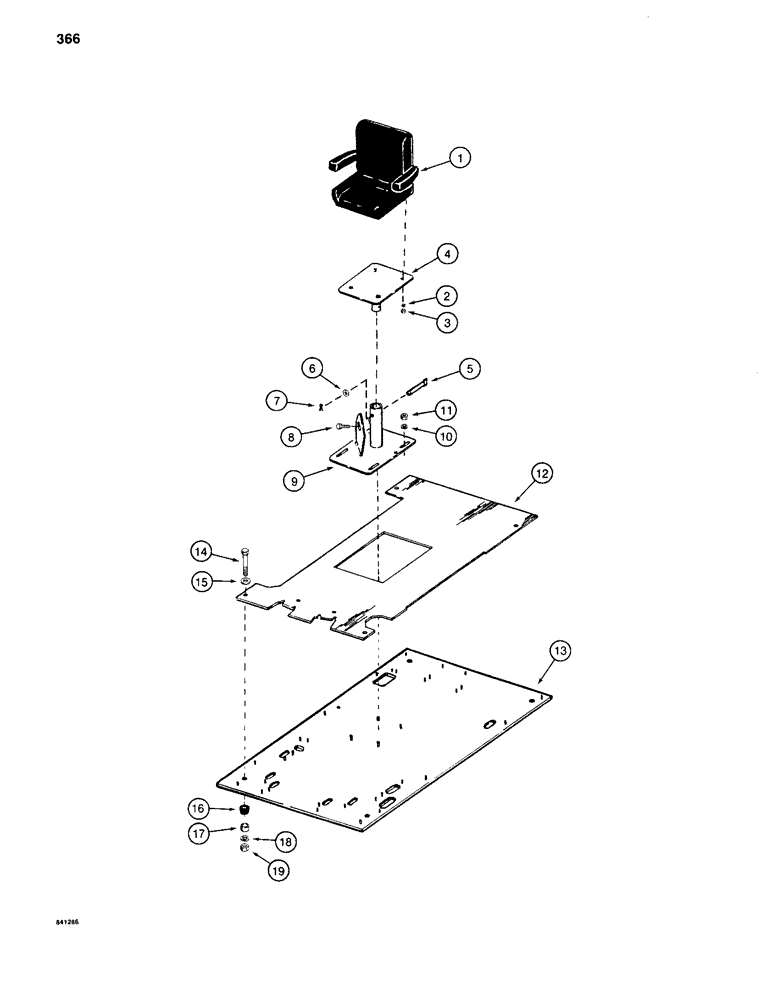

Запчасти Case 880C (366) - SEAT, SEAT MOUNTING, AND FLOOR PLATE, USED BEFORE PIN 6205236 (05) - UPPERSTRUCTURE CHASSIS

1

S612692

SEAT ASSY.

SEAT - black color, parts list Figure 370

1шт.

2

195-103

WASHER,5/16"

- flat, 5/16"

4шт.

3

131-205

LOCK NUT,5/16"-18

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

4

S513120

BRACKET - seat mounting, upper

1шт.

5

S61972

PIN

CLEVIS PIN - special, seat bracket

1шт.

6

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

7

S120261

PIN

COTTER PIN - hair, special

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

S612856

BRACKET - seat mounting, lower

1шт.

10

S95569

WASHER

- flat, 1/2", hardened

4шт.

11

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

12

S613934

FLOOR MAT

FLOORMAT - operator compartment

1шт.

13

S955600

FLOOR

PLATE - floor

1шт.

14

113-727

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex head, 3/4" - 10 NC x 4-3/4"

4шт.

15

S84752

WASHER

- flat, 3/4"

4шт.

16

S112578

MOUNTING PARTS

MOUNT - rubber, floor plate

4шт.

17

S96618

SPACER - mounting

4шт.

18

195-2270

WASHER,13/16" x 3" x .238", HDN

- flat, 3/4"

4шт.

19

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

4шт.
