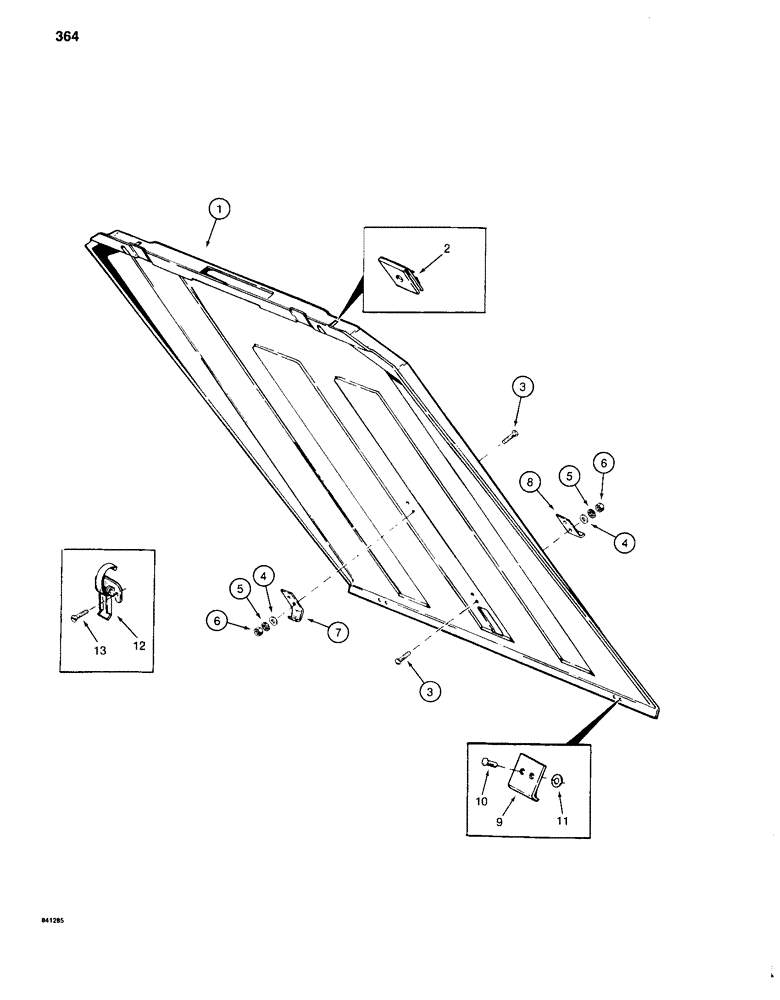

Запчасти Case 880C (364) - CAB VANDAL GUARD, USED BEFORE PIN 6205236 (05) - UPPERSTRUCTURE CHASSIS

S514621

ASSEMBLY

GUARD ASSEMBLY - vandal, Includes: Ref. 1 - 11

1шт.

1

S956205

GUARD - vandal

1шт.

2

S109504

CLIP - U-type

2шт.

3

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

MACHINE SCREW - pan head, 1/4" - 20 NC x 3/4"

4шт.

4

195-101

WASHER,3/16"

- flat, 1/4"

4шт.

5

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

7

S511226

BRACKET - center

1шт.

8

S231617

CLIP - center, lower

1шт.

9

S108311

CLIP - lower

2шт.

10

S109782

RIVET

- 3/16" special

4шт.

11

195-513

WASHER,#10

- flat, 7/32"

4шт.

12

S109781

LATCH

- vandal guard

1шт.

13

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

MACHINE SCREW - pan head, No. 10 - 32 NF x 3/4"

2шт.
