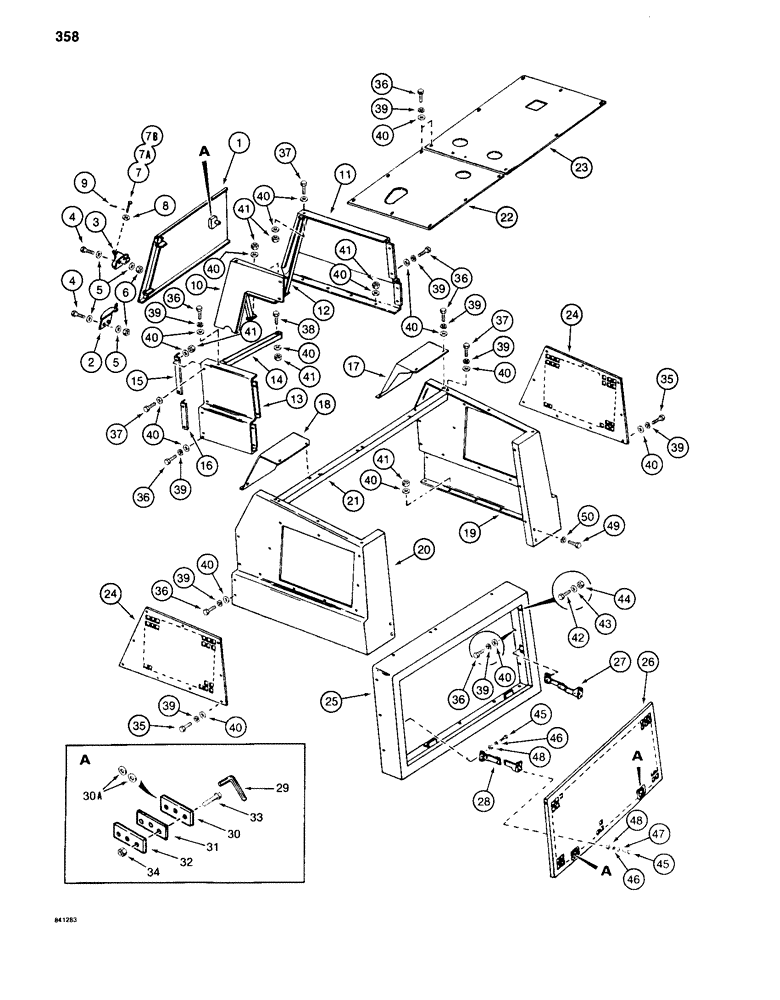

Запчасти Case 880C (358) - SHROUD, ENGINE COVER, AND SIDE PANELS (05) - UPPERSTRUCTURE CHASSIS

1

S514458

DOOR - access, front

1шт.

2

S221455

BRACKET

- door mounting, upper

1шт.

3

S221453

BRACKET

- door mounting, lower

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

195-103

WASHER,5/16"

- flat, 3/8"

8шт.

6

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8"

4шт.

7

S217887

PIN

CLEVIS PIN - special, with washer welded under head, no longer available, S10775 order clevis pin and S62147 retainer

1шт.

7

S10775

PIN

CLEVIS PIN - special

1шт.

8

S62147

RING

RETAINER - clevis pin

1шт.

9

S120261

PIN

COTTER PIN - hair, special

1шт.

10

S505715

PANEL - door mounting

1шт.

11

S615264

PANEL - right-hand front

1шт.

12

S219441

BRACE - front panels, used before PIN 6205456

2шт.

12

S240666

BRACE

- front panels, used on PIN 6205456 and after

2шт.

13

S514461

PANEL - side, left-hand front

1шт.

14

S234600

BRACE - panel

1шт.

15

S219439

ANGLE - upper, if used

1шт.

16

S219440

ANGLE - lower, if used

1шт.

17

S514460

COVER - right-hand, if used

1шт.

18

S514459

COVER - left-hand, if used

1шт.

19

S615267

SHROUD - engine compartment, right-hand

1шт.

20

S615266

SHROUD - engine compartment, left-hand

1шт.

21

S515162

BRACE

-, Serial Range: shroud-shroud

1шт.

22

S514457

COVER - top, left-hand

1шт.

23

S515161

COVER

- top, right-hand

1шт.

24

S514463

GRILLE - sides

2шт.

25

S615262

FRAME - rear access door

1шт.

26

S514462

DOOR - access, rear

1шт.

27

S219460

BRACE

- rear door, right-hand

1шт.

28

S219473

BRACE

- rear door, left-hand

1шт.

29

S115083

KEY

- door lock

1шт.

30

S110415

SPACER - if used, see Ref. 30A

3шт.

30a

195-103

WASHER,5/16"

- flat, , if used, see Ref. 30 5/16"

6шт.

31

S116937

SHIM - door lock

3шт.

32

S110414

LOCK

- door, front and rear

3шт.

33

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex head, 1/4" - 20 NC x 7/8"

6шт.

34

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

6шт.

35

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

36

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

37

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

1шт.

38

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

39

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

40

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

1шт.

41

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

42

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

43

195-103

WASHER,5/16"

- flat, 3/8"

2шт.

44

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

45

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex head, 1/4" - 20 NC x 7/8"

10шт.

46

195-101

WASHER,3/16"

- flat, 1/4"

10шт.

47

195-518

WASHER,1/4", SAE

- flat, 9/32"

4шт.

48

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

10шт.

49

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

50

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
