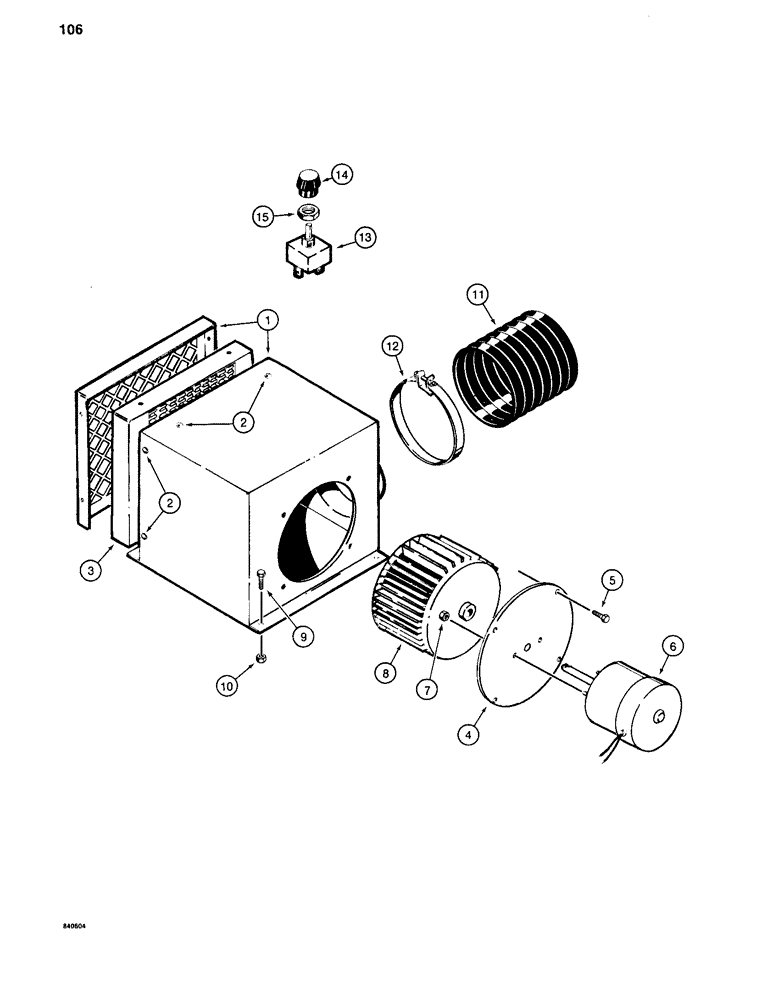

Запчасти Case 880C (106) - HEATER, PIN 6205236 AND AFTER (05) - UPPERSTRUCTURE CHASSIS

S240031

HEATER

ASSEMBLY - excavator cab, Includes: Ref. 1 - 15

1шт.

1

S118417

HOUSING

- heater

1шт.

2

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 - 24 NC x 1/2"

10шт.

3

S118427

CORE

- heater

1шт.

4

S118422

PLATE

- motor mounting

1шт.

5

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

BOLT - hex head, 1/4" - 20 NC x 1/2", plated

4шт.

6

S118418

MOTOR, ELECTRIC

MOTOR - blower wheel, 24 volt

1шт.

7

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

2шт.

8

S118423

BLOWER

FAN - blower

1шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

10

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

4шт.

11

N8908

AIR INTAKE TUBE

DUCT - heater

1шт.

12

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - heater

1шт.

13

S118430

SWITCH

- heater, rotary

1шт.

14

S118431

KNOB

- heater switch

1шт.

15

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

2шт.
