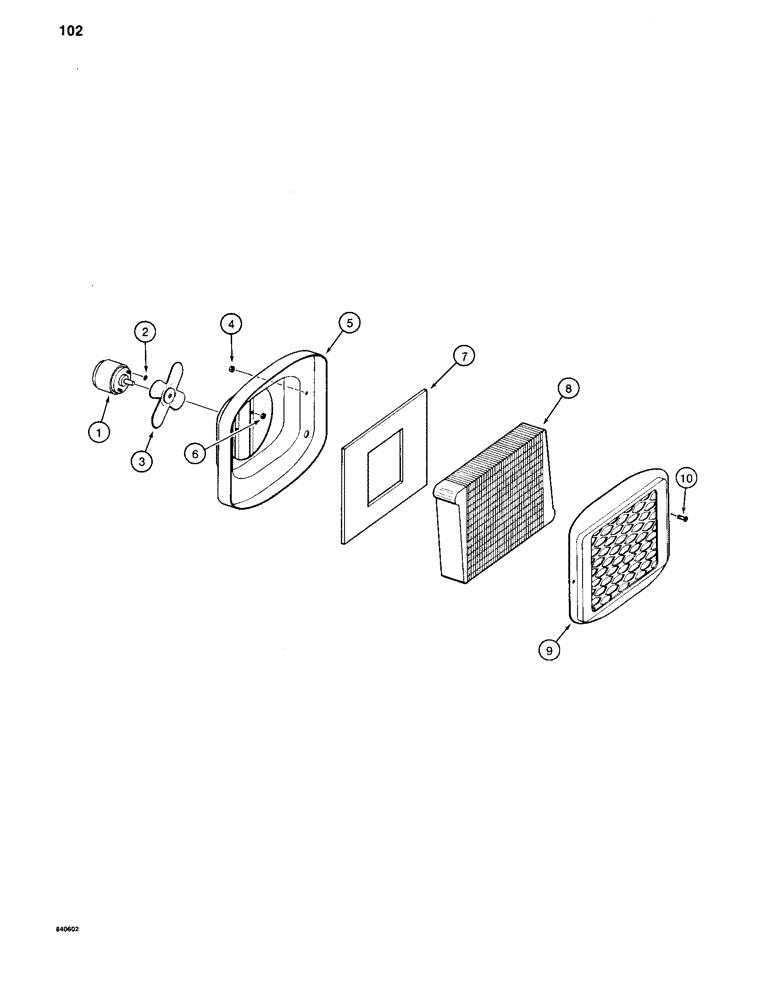

Запчасти Case 880C (102) - HEATER, BEFORE PIN 6205236 (05) - UPPERSTRUCTURE CHASSIS

S507825

HEATER

ASSEMBLY - excavator cab, Includes: Ref. 1 - 11

1шт.

1

D54871

MOTOR

- fan

1шт.

2

L35760

WASHER

- special, fan balance

1шт.

3

S87351

FAN

- blade

1шт.

4

129-18

NUT,#12-24

- hex, No. 12 - 24 NC

2шт.

5

S97846

CASING

HOUSING - rear

1шт.

6

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

AND WASHER ASSEMBLY - includes integral external tooth lock washer, No. 8 - 32 NC

2шт.

7

S87354

PAD

-, Serial Range: housing-core

1шт.

8

S107728

HEAT-EXCHANGER

CORE - heater

1шт.

9

S97848

BAFFLE

- front

1шт.

10

S87352

SCREW - special

2шт.

11

S97852

SWITCH

ASSEMBLY - heater, not shown

1шт.
