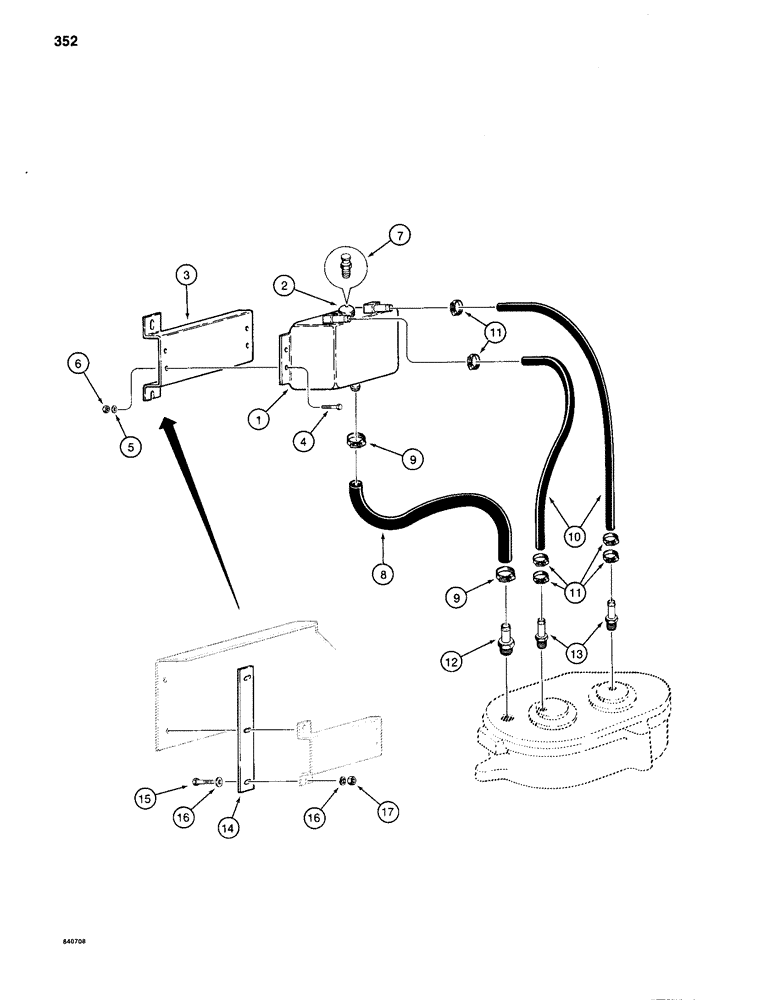

Запчасти Case 880C (352) - SWING GEARBOX LUBRICATION SYSTEM (04) - UNDERCARRIAGE

S618251

KIT

- gearbox lubrication, includes all parts on this figure plus instructions, Includes: Ref. 1 - 17

1шт.

S516470

CONTAINER

RESERVOIR ASSEMBLY - lubricant, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - lubricant

1шт.

2

N8793

CAP

- reservoir

1шт.

3

S242000

BRACKET

- reservoir

1шт.

4

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

5

195-103

WASHER,5/16"

- flat, 5/16"

4шт.

6

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

7

L33264

BREATHER

- reservoir

1шт.

8

REF

INSTRUCTION

HOSE - gearbox cover, 11" (279 mm) long, cut from S118576, see below

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

10

REF

INSTRUCTION

HOSE - to bearing covers, 20" 508 mm) long, cut from S120197, see below

2шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

6шт.

12

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - gearbox

1шт.

13

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

STEM FITTING - bearing covers

2шт.

14

S119634

BAR

- mounting

1шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13NC

1шт.

S118576

HOSE,0.62" ID BULK

0.625" ID x 300.00" Bulk

1шт.

S120197

HOSE,0.25" ID x 600.00", SAE 100R3 Class H

- Bulk length 0.25" ID x 600.00", SAE 100R3 Class H

1шт.
