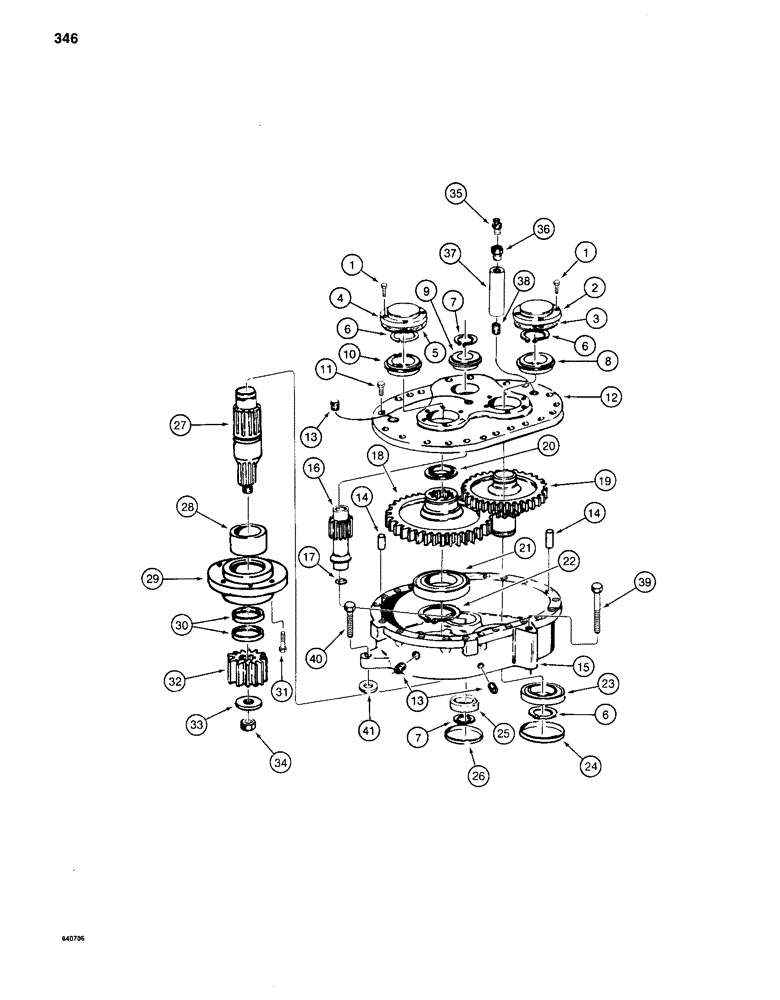

Запчасти Case 880C (346) - SWING GEARBOX, BEFORE PIN 6205625 (04) - UNDERCARRIAGE

S608099

REDUCER

GEARBOX ASSEMBLY - swing, Includes: Ref. 1 - 34

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S402194

CAP

COVER - bearing, cluster gear, not tapped for lubrication line, see Figure 350

1шт.

2

S242001

COVER

- bearing, cluster gear, tapped for lubrication line, see Figure 350

1шт.

3

S103261

GASKET

- cover

1шт.

4

S214012

CAP

COVER - bearing, output shaft, not tapped for lubriction line, see Figure 350

1шт.

4

S242002

COVER

- bearing, output shaft, tapped for lubrication line, see Figure 350

1шт.

5

S85842

GASKET

- cover

1шт.

6

A17903

SNAP RING,#156, Ext

Ring, Snap, , bearing #156, Ext

3шт.

7

A7409

SNAP RING,#137, Ext

Ring, Snap, , bearing #137, Ext

2шт.

8

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

- cluster gear and shaft, cover end

1шт.

9

S64312

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

- input shaft, cover end

1шт.

10

S238147

SPHERICAL BEARING,40mm ID x 90mm OD x 23mm

BALL BEARING - output shaft, cover end

1шт.

11

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

23шт.

12

S503551

COVER

- gear housing

1шт.

Use Loctite in place of Gasket when installing Ref. 28

1шт.

13

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex socket head 3/8" NPT

4-5шт.

14

S64319

CALIPER

DOWEL PIN - gearbox, Serial Range: cover-case

2шт.

15

S613678

CASE

HOUSING - gearbox

1шт.

Use Loctite in place of Gasket when installing Ref. 28

1шт.

16

S37176

PINION

GEAR AND SHAFT - input

1шт.

17

41-1015

PLUG,Cup, 15/16"

- expansion

1шт.

18

S601577

GEAR

DRIVE GEAR - output shaft, must be replaced with Ref. 19 as a matched set

1шт.

19

S601576

GEAR

CLUSTER GEAR AND SHAFT - intermediate, must be replaced with Ref. 18 as a matched set

1шт.

20

S214014

SPACER

- gear to bearing in cover

1шт.

21

S64321

BALL BEARING,70mm ID x 110mm OD x 20mm W

- drive gear

1шт.

22

A31227

SNAP RING,#275, Ext

RING, Snap, , bearing #275, Ext

1шт.

23

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BALL BEARING - cluster gear and shaft, housing end

1шт.

24

S114620

PLUG

- housing, at cluster gear shaft

1шт.

25

D47572

BEARING

BALL BEARING - input shaft, housing end

1шт.

26

S114619

PLUG

- housing, at input shaft

1шт.

B17423

LOCTITE

- 271 Red, 50ml bottle, not shown, use in place of gasket when installing, Serial Range: cover-housing

1шт.

S608099

REDUCER

GEARBOX ASSEMBLY - swing, continued from figure 346, Includes: Ref. 27 - 34

1шт.

27

S504959

SHAFT

OUTPUT SHAFT - swing gearbox

1шт.

S608050

HOUSING

ASSEMBLY - seal and bushing, Includes: Ref. 28 - 30

1шт.

28

S72921

BUSHING

- output shaft

1шт.

Use Loctite in place of Gasket when installing Ref. 28

1шт.

29

NSS

NOT SOLD SEPARAT

HOUSING - seal and bushing

1шт.

30

S206136

OIL SEAL

- oil

2шт.

31

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex head, 5/8" - NC x 1-3/4, grade 8

6шт.

32

S502648

PINION

GEAR - output shaft

1шт.

33

S83676

SPACER

- gear

1шт.

34

S64448

NUT

- special, self-locking

1шт.

35

L33264

BREATHER

- gearbox, if used

1шт.

Refs. 35-38 are not used when lubrication lines are used. See Figure 372.

1шт.

36

S238780

TUBE ASSY.,5.87" L

TUBE - oil fill and breather, if used

1шт.

Refs. 35-38 are not used when lubrication lines are used. See Figure 372.

1шт.

37

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING - reducer, 3/8" NPT x 1/8" NPT, if used

1шт.

Refs. 35-38 are not used when lubrication lines are used. See Figure 372.

1шт.

38

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE - pipe, 3/8" NPT x 1-1/2", if used

1шт.

Refs. 35-38 are not used when lubrication lines are used. See Figure 372.

1шт.

39

13-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 5

- hex head, 7/8" - 9 NC x 5-1/2"

2шт.

40

13-1428

CAPSCREW,Hex, 7/8" - 9 x 1 3/4", Gr 5

BOLT - hex head, 7/8" - 9 NC x 1-3/4"

1шт.

41

S107839

WASHER

- flat, used as shims on some machines

1шт.

B17423

LOCTITE

- 271 Red, 50 ml bottle, not shown, use is place of gasket when installing Ref. 28

1шт.
