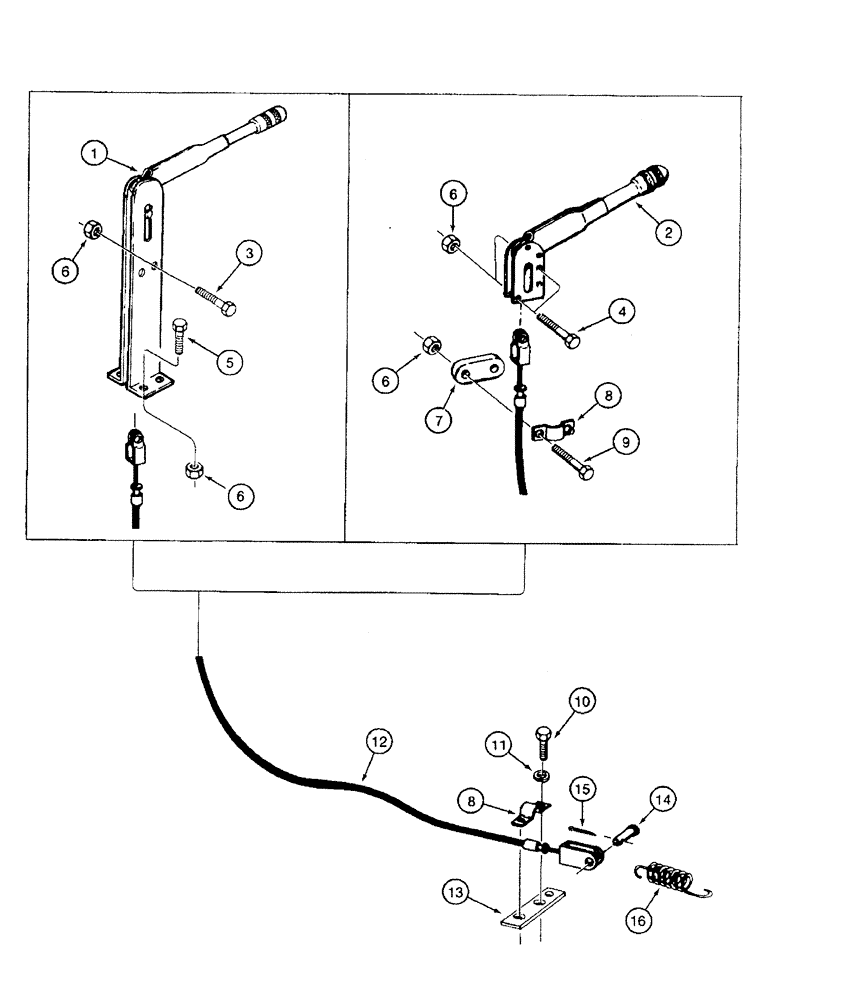

Запчасти Case 880C (340) - SWING BRAKE LEVER AND CABLE (04) - UNDERCARRIAGE

1

S514575

LEVER

LEVER - swing brake, used on PIN 6205236 and after

1шт.

2

S26639

LEVER

LEVER - swing brake, used before PIN 6205236

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Used with Ref 1 only

2шт.

4

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Used with Ref. 2 only

2шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used with Ref. 1 only

4шт.

6

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4-6шт.

7

S99304

SPARE PART SPACER - near lever, used with Ref. 2 only

1шт.

8

A55980

CLAMP

CLAMP - cable

1-2шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - hex head, 3/8" - 16 NC x 1/2", used with Ref. 2 only

2шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

192-21

LOCK WASHER,3/8"

2шт.

12

S33995

CABLE

CABLE - swing brake

1шт.

13

S68977

CLAMP

SPACER - cable clamp, used before PIN 6205236

1шт.

14

S10715

PIN

CLEVIS PIN - 1/4" x 7/8"

1шт.

15

132-24

COTTER PIN,3/32" x 1/2"

1шт.

16

S202938

SPRING

SPRING - return

1шт.
