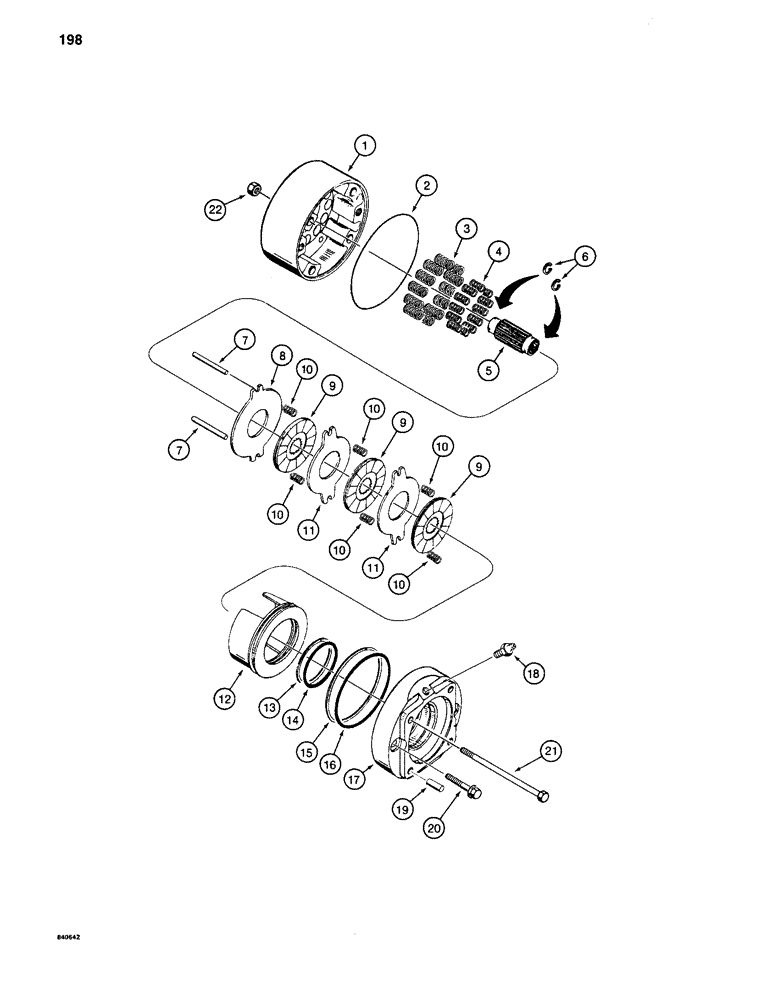

Запчасти Case 880C (198) - S515960 TRACK DRIVE BRAKE, PIN 6205625 AND AFTER (04) - UNDERCARRIAGE

S515960

BRAKE ASSY.

BRAKE ASSEMBLY - track drive, Includes: Ref. 1 - 20

2шт.

1

N8685

HOUSING

- brake assembly

2шт.

2

S107759

PACKING

O-RING - housing seal

1шт.

3

S107755

SPRING

- compression, outer

12шт.

4

S107754

SPRING

- compression, inner

12шт.

5

N8907

SHAFT

- splined

1шт.

6

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, 1.06", Int, #106

2шт.

7

S107760

PIN

- torque

2шт.

8

S107756

DISC

- primary, fixed

1шт.

9

S109455

DISC

- rotating

3шт.

10

S107758

SPRING

- compression

6шт.

11

S109456

DISC

- fixed

2шт.

12

S107764

PISTON

- track brake

1шт.

13

S107767

BACK-UP RING

BACKUP RING - piston O-ring, small

1шт.

14

A26993

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

- piston, small

1шт.

15

S107765

BACK-UP RING

BACKUP RING - piston O-ring, large

1шт.

16

S107763

O-RING

- piston, large

1шт.

17

N8687

PLATE

- power

1шт.

18

S107762

SCREW

- air removal

1шт.

19

N60355

PLUG

- vinyl

1шт.

20

S114839

FLANGE BOLT

BOLT - hex flange head, special

2шт.

21

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

Mounts brake assembly to track drive motor Hex, 1/2"-13 x 6", G5

8шт.

22

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

8шт.
