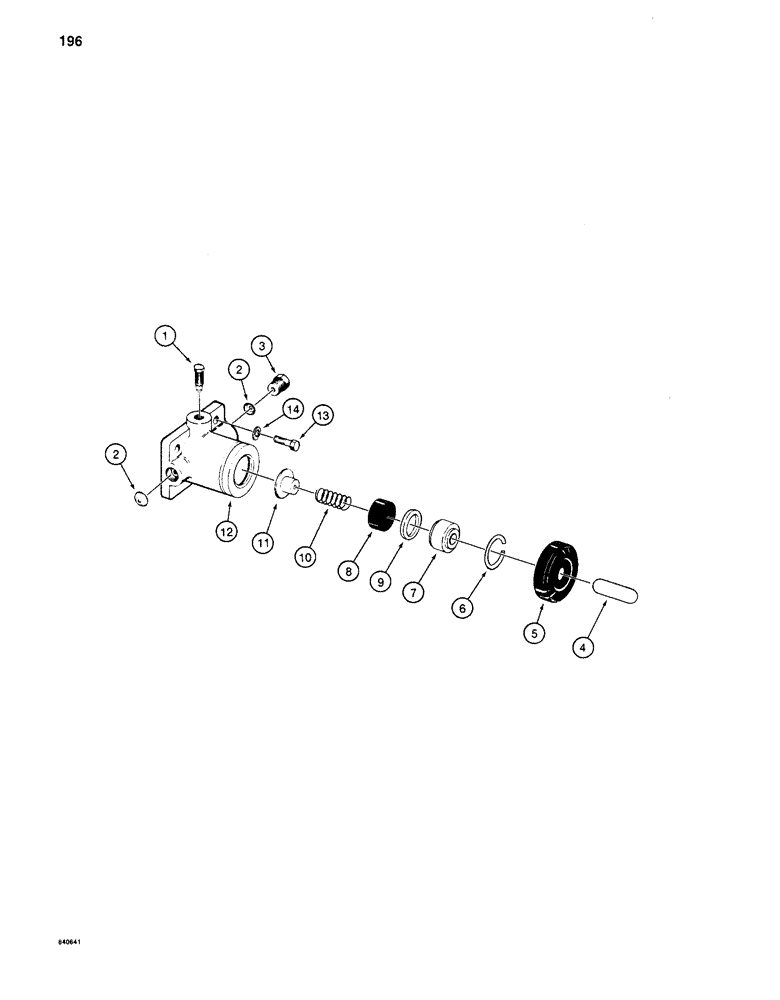

Запчасти Case 880C (196) - S231296 TRACK BRAKE CYLINDER, BEFORE PIN 6205625 (04) - UNDERCARRIAGE

S231296

CYLINDER ASSY.

CYLINDER - track brake, Includes: Ref. 1 - 12

2шт.

1

S108035

SCREW

- bleeder

1шт.

2

R15270

HARDWARE

INSERT - 1/4" tube seat

2шт.

3

S61747

PLUG

- 1/4" tube seat

1шт.

4

S106714

ROD - push

1шт.

S231297

KIT

- piston service, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

BOOT - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

CUP - piston

1шт.

9

NSS

NOT SOLD SEPARAT

BACKUP RING - piston

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

11

S108478

SEAT - spring

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

13

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT - hex socket head, 1/4" - 20 NC x 3/4"

2шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.
