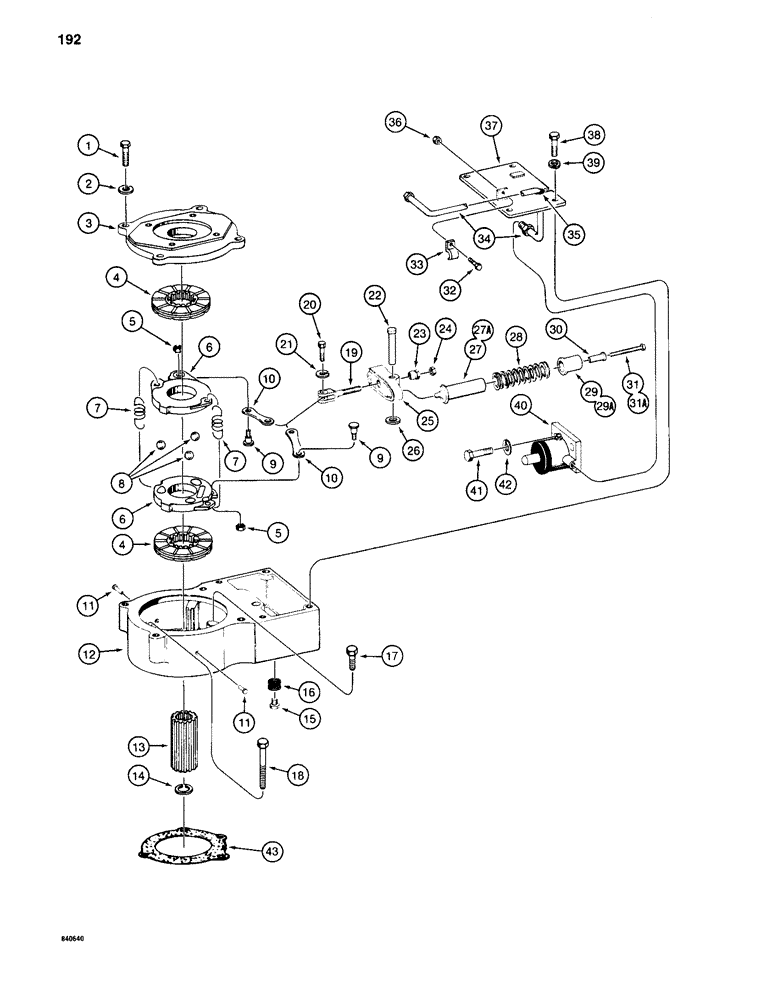

Запчасти Case 880C (192) - S611466 TRACK BRAKE DRIVE, BEFORE PIN 6205605 (04) - UNDERCARRIAGE

S611466

KIT

BRAKE ASSEMBLY - track drive, Includes: Ref. 1 - 42

2шт.

1

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

3

S507605

COVER

- brake

1шт.

S510342

BRAKE

ASSEMBLY - disc, Includes: Ref. 5 - 10

1шт.

4

S107750

DISC

- brake

2шт.

S216242

CLUTCH DISC

ACTUATOR ASSEMBLY - brake, Includes: Ref. 5 - 10

1шт.

5

86637933

JAM NUT,5/16" - 24, Gr 5

Jam, 5/16"- 24, G5

2шт.

6

S68704

DISC

ACTUATOR - brake

2шт.

7

S68705

SPRING

- actuator

2шт.

8

S68703

BALL

- actuator, 3/4" diameter

3шт.

9

S105785

STUD

-, Serial Range: link-actuator

2шт.

10

S68707

LINK

- brake actuator

2шт.

11

S79912

RIVET

- brake assembly

2шт.

12

S612141

HOUSING

- brake assembly

1шт.

13

S511702

COUPLING,14T Internal / 28T External

- splined

1шт.

14

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , coupling 1.06", Int, #106

1шт.

15

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

16

S75334

GROMMET,5/16" ID x 3/4" Groove Dia

- rubber

1шт.

17

165-138

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 1 1/8"

BOLT - hex head, self-locking, 1/2" - 13 NC x 1-1/8"

1шт.

18

165-123

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 3"

BOLT - hex head, self-locking, 1/2" - 13 NC x 3"

1шт.

19

S65002

FORK

YOKE - links

1шт.

20

S66646

BOLT,5/16" x 3/4"

SCREW - shoulder

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

22

S61970

PIN

CLEVIS PIN - special

1шт.

23

S64911

NUT

- special, ball seat

1шт.

24

86585245

SPECIAL NUT,JAM, 5/8" - 18

JAM NUT - hex, 3/8" - 24 NF, if used, order 131-493

1шт.

24

131-493

NUT

- hex, self-locking, 3/8" - 24 NF, special

1шт.

25

S203385

LEVER

- brake actuator

1шт.

26

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

27

S223207

SPRING

STOP - spring, used with Refs. 29, 30, 31, and 29 pieces of Ref. 28 Belleville springs

1шт.

Models before PIN 6205457 used Refs. 27, 29, 30, and 31 with 29 pieces of Ref. 28 Belleville springs. Refs. 27A, 29A, and 31A and one additional Belleville spring (Ref. 28) can be used for service replacement.

1шт.

27a

S118887

STOP

- spring, used with Refs. 29A, 31A, and 30 pieces of Ref. 28 Belleville springs

1шт.

Models before PIN 6205457 used Refs. 27, 29, 30, and 31 with 29 pieces of Ref. 28 Belleville springs. Refs. 27A, 29A, and 31A and one additional Belleville spring (Ref. 28) can be used for service replacement.

1шт.

28

S85984

DISC

SPRING - Belleville

29-30шт.

Models before PIN 6205457 used Refs. 27, 29, 30, and 31 with 29 pieces of Ref. 28 Belleville springs. Refs. 27A, 29A, and 31A and one additional Belleville spring (Ref. 28) can be used for service replacement.

1шт.

29

S103738

PLUG

- spring, used with Refs. 27, 30, 31, and 29 pieces of Ref. 28 Belleville springs

1шт.

Models before PIN 6205457 used Refs. 27, 29, 30, and 31 with 29 pieces of Ref. 28 Belleville springs. Refs. 27A, 29A, and 31A and one additional Belleville spring (Ref. 28) can be used for service replacement.

1шт.

29a

S118888

PLUG

- spring, used with Refs. 27A, 31A, and 30 pieces of Ref. 28 Belleville springs

1шт.

Models before PIN 6205457 used Refs. 27, 29, 30, and 31 with 29 pieces of Ref. 28 Belleville springs. Refs. 27A, 29A, and 31A and one additional Belleville spring (Ref. 28) can be used for service replacement.

1шт.

30

S103737

SPACER

- bolt, used with Refs. 29 and 31

1шт.

Models before PIN 6205457 used Refs. 27, 29, 30, and 31 with 29 pieces of Ref. 28 Belleville springs. Refs. 27A, 29A, and 31A and one additional Belleville spring (Ref. 28) can be used for service replacement.

1шт.

31

123-3

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5, Full Thd

- special, 1/4" - 20 NC x 1-3/4", used with Refs. 27, 29, and 30 only

1шт.

Models before PIN 6205457 used Refs. 27, 29, 30, and 31 with 29 pieces of Ref. 28 Belleville springs. Refs. 27A, 29A, and 31A and one additional Belleville spring (Ref. 28) can be used for service replacement.

1шт.

31a

S118889

BOLT

- special, 3/8" - 16 NC x 1-3/4", used with Refs. 27 and 29 only

1шт.

Models before PIN 6205457 used Refs. 27, 29, 30, and 31 with 29 pieces of Ref. 28 Belleville springs. Refs. 27A, 29A, and 31A and one additional Belleville spring (Ref. 28) can be used for service replacement.

1шт.

S611466

KIT

BRAKE ASSEMBLY - track drive, continued, Includes: Ref. 32 - 42

1шт.

32

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

33

A38799

CLAMP

- tube

1шт.

34

S234881

LINE,0.25" OD x 3.3, 1.75" L

TUBE - includes rubber grommet, Includes: Ref. 35

1шт.

35

S120258

GROMMET,5/16" ID x 5/8" Groove Dia

- rubber

1шт.

36

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

1шт.

37

S234880

COVER ASSEMBLY - brake cylinder housing

1шт.

38

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

40

S231296

CYLINDER ASSY.

CYLINDER - track brake, parts list figure 196

1шт.

41

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT - hex socket head, 1/4" - 20 NC x 3/4"

2шт.

42

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

43

S80305

GASKET

- brake housing

1шт.
