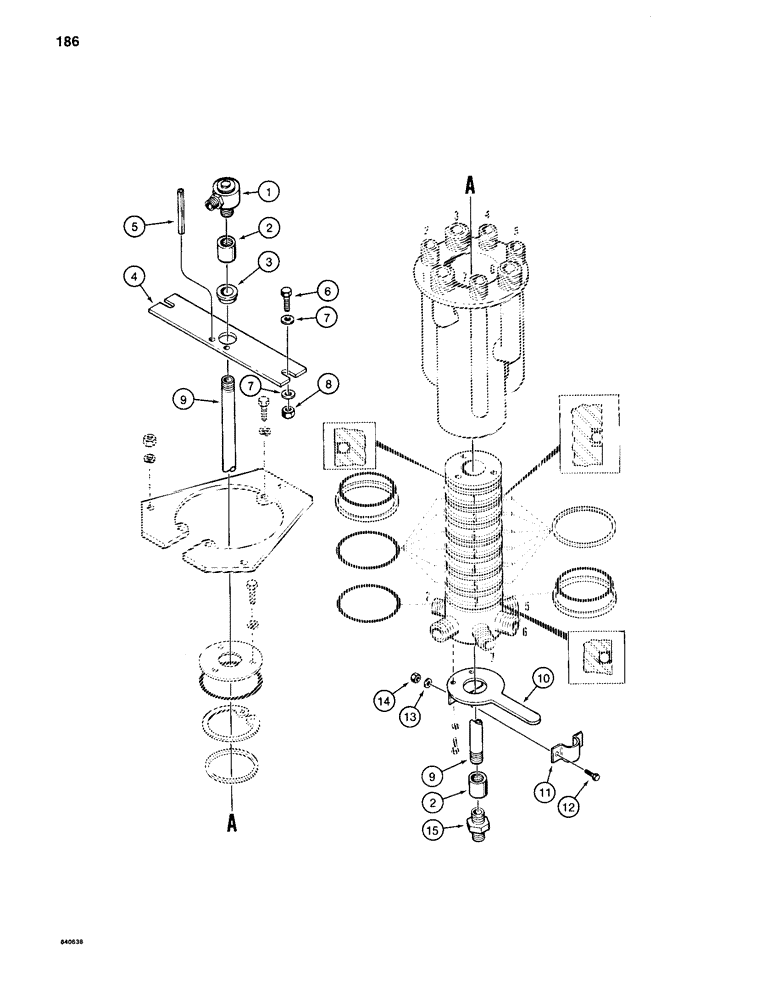

Запчасти Case 880C (186) - INNER SWIVEL ASSEMBLY (04) - UNDERCARRIAGE

1

S209351

FITTING

SWIVEL ASSEMBLY - upper, parts list Figure 188

1шт.

2

S115683

COUPLING

- pipe, female, 1/4" NPT, top and bottom

2шт.

3

S71802

NYLON BEARING,0.756" ID x 1.187" OD x 0.375"

BEARING - swivel, nylon

1шт.

4

S71801

PLATE - swivel mounting

1шт.

5

138-169

LOCK PIN,5/16" x 4", Slotted

Pin, 5/16" x 4", Slotted

2шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

7

195-104

WASHER,3/8"

- flat, 3/8"

4шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

9

221-719

PIPE,Nipple, 1/4" NPT x 24 1/2"

- 1/4" NPT x 24-1/4"

1шт.

10

S237399

LARGE PLATE

PLATE - inner swivel mounting

1шт.

11

A55980

CLAMP

- pipe

1шт.

12

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

13

195-102

WASHER,1/4"

- flat, 5/16"

2шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

15

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, male

1шт.
