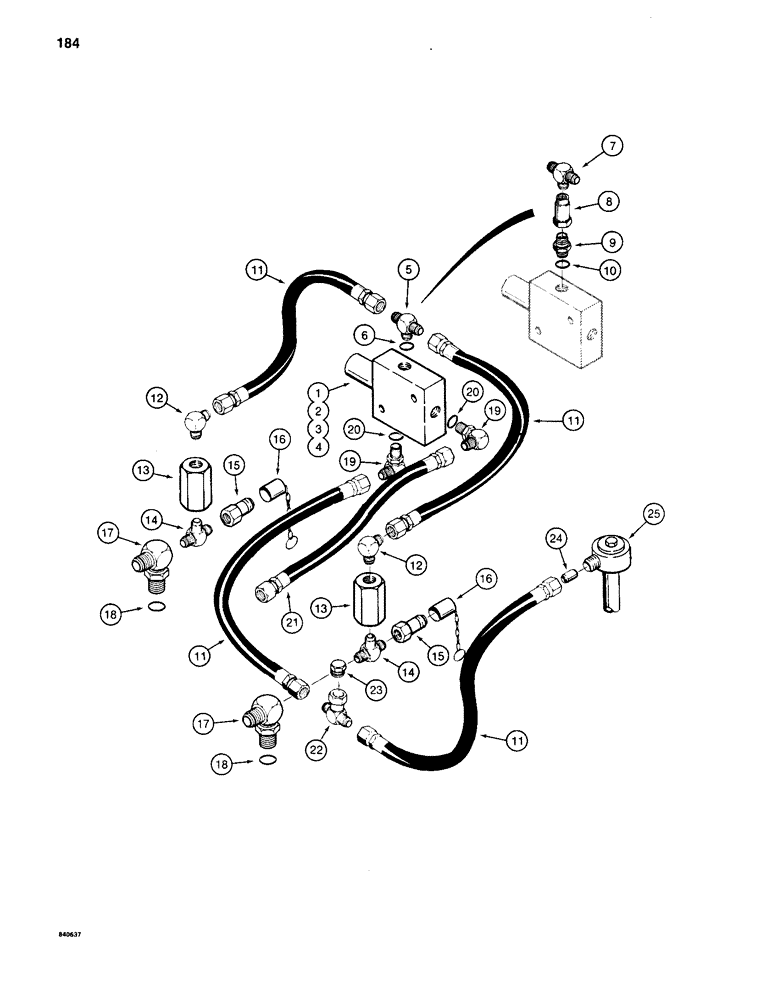

Запчасти Case 880C (184) - TRACK BRAKE HYDRAULIC LINES - UPPER, PIN 6205236 AND AFTER (04) - UNDERCARRIAGE

1

S237789

VALVE

- solenoid, parts list Figure 294

1шт.

2

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex head, 1/4" - 20 NC x 2-3/4", valve mounting, not shown

2шт.

3

195-102

WASHER,1/4"

- flat, , valve mounting, used as spacer 1/4"

1шт.

4

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

5

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- at valve, models without screen, Includes: Ref. 6

1шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

7

218-553

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Br

- at valve, models with screen

1шт.

8

S98004

FILTER

SCREEN - solenoid valve protection, if used, for tee used between Refs. 8 and 9 on models with fast hoist see figure 220

1шт.

9

218-5443

FITTING

ADAPTER - straight, models with screen, Includes: Ref. 10

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

11

S99421

HOSE ASSY.

HOSE - 23" (584 mm) long

4шт.

12

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

2шт.

13

S110789

VALVE

CHECK VALVE - brake circuit

2шт.

14

217-1273

TEE,Male, 1/4"-18

- at check valves

2шт.

15

S206607

DISC

COUPLING - quick disconnect

2шт.

16

S206608

CAP

- dust

2шт.

17

S113093

ELBOW

- 90 degree, at control valves, Includes: Ref. 18

2шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, at solenoid valve, Includes: Ref. 20

2шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

21

S241219

HOSE ASSY.

HOSE - 50" (1270 mm) long

1шт.

22

218-573

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Fem Br

- brake line

1шт.

23

221-662

PLUG,Hex Hd, 1/4"-18

- hex head, 1/4" NPT

1шт.

24

S89669

VALVE

RESTRICTOR - flow

1шт.

25

REF

INSTRUCTION

SWIVEL - inner, parts list Figure 188

1шт.
