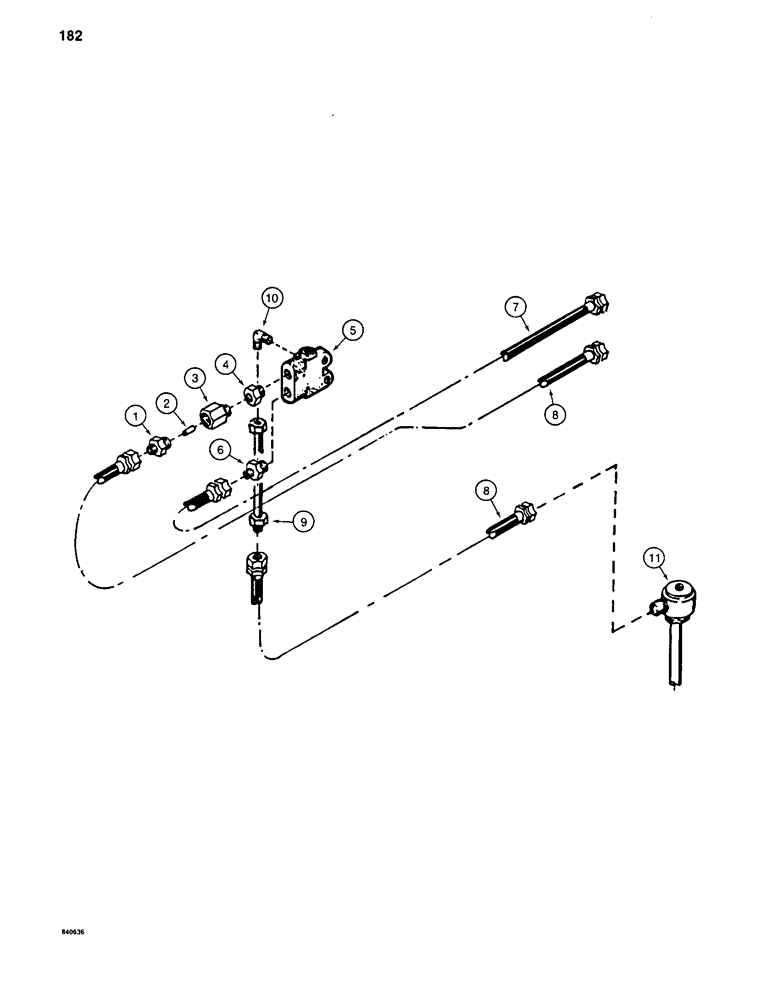

Запчасти Case 880C (182) - TRACK BRAKE HYDRAULIC LINES - UPPER, BEFORE PIN 6205236 (04) - UNDERCARRIAGE

1

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, hose to check valve

1шт.

2

S114908

RESTRICTOR

- flow

1шт.

3

S78869

VALVE

CHECK VALVE - brake circuit

1шт.

4

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

ADAPTER - valve port, upper

1шт.

5

S39280

VALVE

- selector, parts list Figure 190

1шт.

6

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, valve port, lower

1шт.

7

S61247

HOSE

- brake circuit, 60" (1524 mm) long, see Figure 206 for connecting parts to hydraulic reservoir

1шт.

8

S11231

HOSE ASSY.

HOSE - brake circuit, 68" (1727 mm) long, see Figure 204 for connecting parts at control valve

2шт.

9

S238043

TUBE ASSY.

TUBE - from selector valve

1шт.

10

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, at selector valve

1шт.

11

REF

INSTRUCTION

SWIVEL - inner, parts list Figure 188

1шт.
