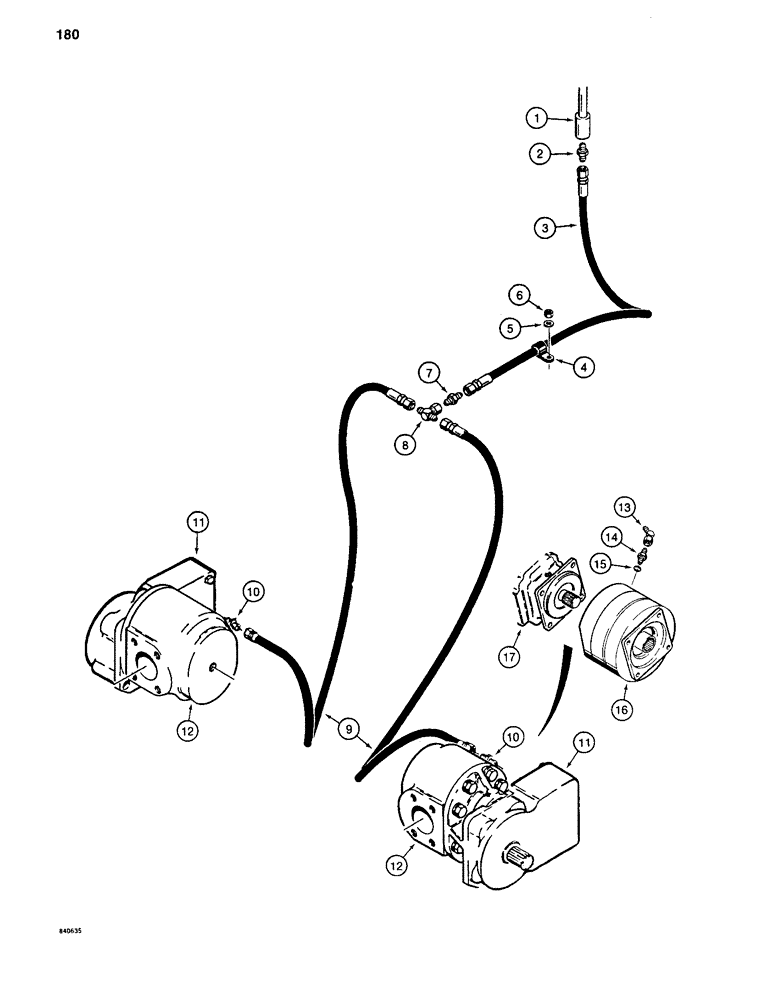

Запчасти Case 880C (180) - TRACK BRAKE HYDRAULIC LINES - LOWER, LONG 7-ROLLER TRACK PIN 6205456 AND AFTER (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

SWIVEL - inner, parts list Figure 188

1шт.

2

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, inner swivel, bottom port

1шт.

3

S77467

HOSE

- from swivel, 38" (965 mm) long

1шт.

4

49885

CLAMP

- hose

1шт.

5

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

6

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

7

218-749

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight, hose to tee

1шт.

8

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

- brake lines

1шт.

9

S77121

HOSE

- to brakes, 21" (533 mm) long

2шт.

10

218-749

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight, at brakes, used on P.I.N. 6205456 through 6205624

2шт.

11

S611466

KIT

BRAKE - parts list Figure 192, used on P.I.N. 6205456 through 6205624

2шт.

12

S223210

MOTOR, HYDRAULIC

MOTOR - hydraulic, track drive, parts list Figure 156, used on P.I.N. 6205456 through 6205624

2шт.

13

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree, at brakes, used on P.I.N. 6205625 and after

2шт.

14

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, at brakes, used on P.I.N. 6205625 and after, Includes: Ref. 15

2шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- adapter, used on P.I.N. 6205625 and after

1шт.

16

S515960

BRAKE ASSY.

BRAKE - parts list Figure 198, used on P.I.N. 6205625 and after

2шт.

17

S515589

MOTOR

- hydraulic, track drive, parts list Figure 158, used on P.I.N. 6205625 and after

2шт.
