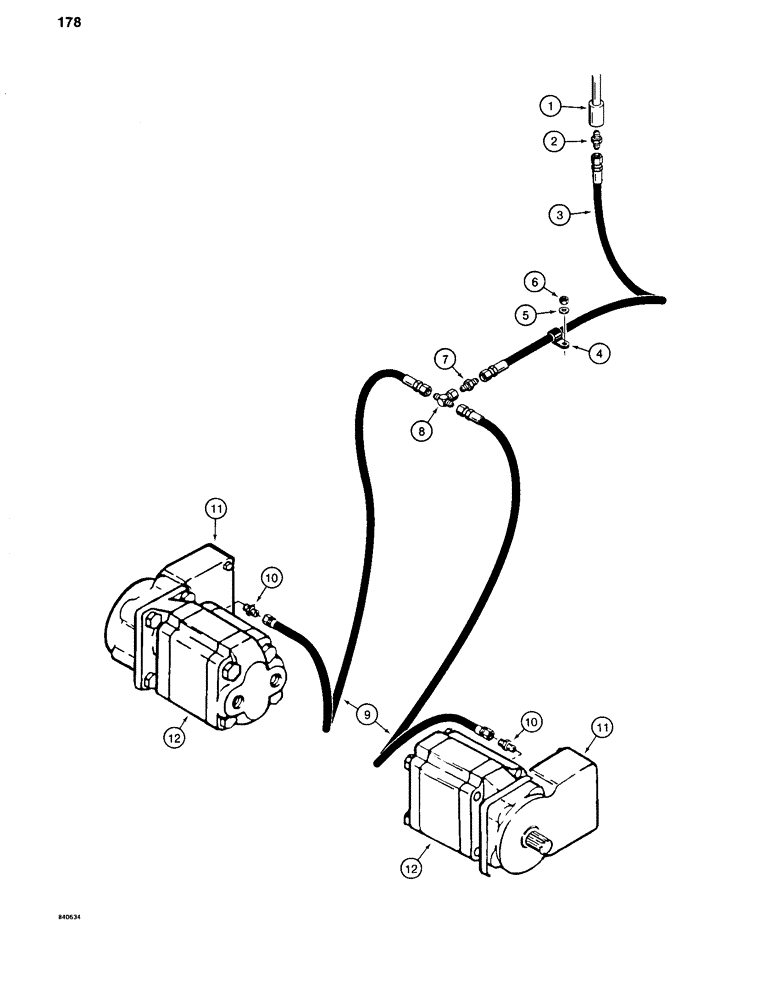

Запчасти Case 880C (178) - TRACK BRAKE HYDRAULIC LINES - LOWER, STANDARD 6-ROLLER TRACK PIN 6205456 AND AFTER (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

SWIVEL - inner, parts list Figure 188

1шт.

2

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, inner swivel, bottom port

1шт.

3

S77467

HOSE

- from swivel, 38" (965 mm) long

1шт.

4

NLS

NO LONGER SERVICED

- hose

1шт.

5

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

6

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

7

218-749

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight, hose to tee

1шт.

8

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

- brake lines

1шт.

9

S77121

HOSE

- to brakes, 21" (533 mm) long

2шт.

10

218-749

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight, at brakes

2шт.

11

S611466

KIT

BRAKE - parts list Figure 192

2шт.

12

S613178

MOTOR - hydraulic, track drive, parts list figure 152

2шт.
